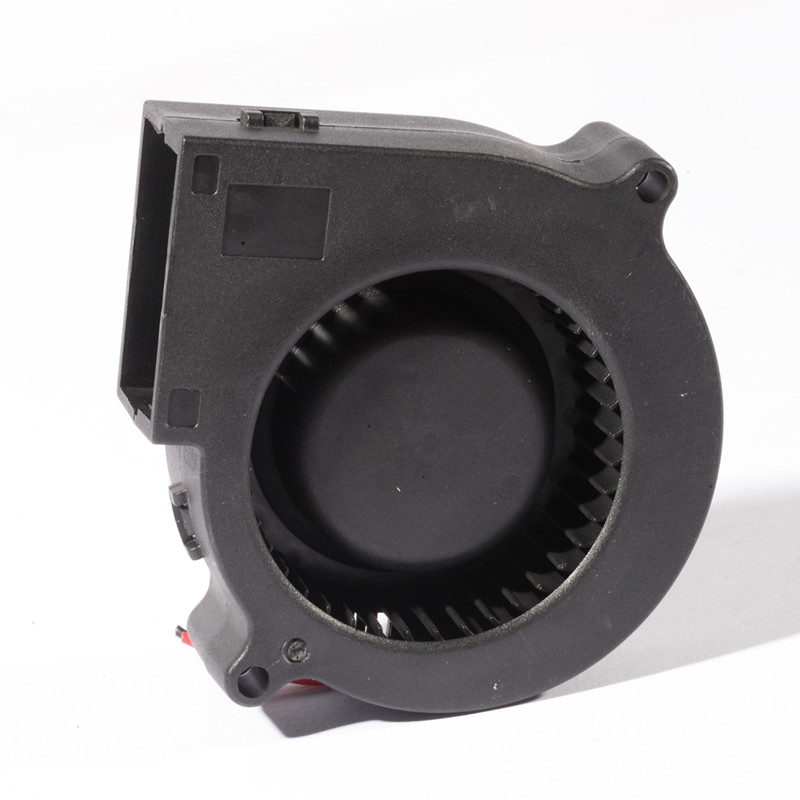

Blower fan 7530,fan size 75x30mm
| Applicable Industry | servers,ozone machine,air conditioner,Telecom,industrial,Automotive,consumer,information technology | ||
| Bearing type | double ball bearing type | ||
| Brand Name | YUNFANPOWER | ||
| Fan Size | 75x30mm | ||
| Keyword | dc blower fan,dc blower axial fan,waterproof fan,high speed cooling fan | ||
| Model Number | DC Blower 7530 | ||
| Voltage support | 12 / 24 VDC | ||
| Warranty | 2years | ||
| Weight | 76g | ||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise |
|---|---|---|---|---|---|---|---|---|---|
| Part NO. | System | VDC | VDC | A | W | RPM | M^2/min | mmH_2O | dBA |
| YFB7030S12L | Sleeve | 12 | 5 | 0.12 | 1.44 | 2500 | 0.21 | 7.54 | 33.3 |
| YFB7030S12M | 5 | 0.15 | 1.8 | 3000 | 0.24 | 11.41 | 37 | ||
| YFB7030S12H | 5 | 0.18 | 2.16 | 3500 | 0.29 | 16.66 | 40.6 | ||
| YFB7030B12L | Ball | 5 | 0.12 | 1.44 | 2500 | 0.21 | 7.54 | 33.3 | |
| YFB7030B12M | 5 | 0.15 | 1.8 | 3000 | 0.24 | 11.41 | 37 | ||
| YFB7030B12H | 5 | 0.18 | 2.16 | 3500 | 0.29 | 16.66 | 40.6 | ||
| YFB7030B12U | 5 | 0.24 | 2.88 | 4200 | 0.33 | 24.74 | 45.3 | ||
| YFB7030B12E | 5 | 0.36 | 4.32 | 4500 | 0.21 | 7.54 | 33.3 | ||
| YFB7030B12V | 5 | 0.43 | 5.16 | 5000 | 0.24 | 11.41 | 37 | ||
| YFB7030S24L | Sleeve | 24 | 12 | 0.1 | 2.4 | 2500 | 0.21 | 7.54 | 33.3 |
| YFB7030S24M | 12 | 0.12 | 2.88 | 3000 | 0.24 | 11.41 | 37 | ||
| YFB7030S24H | 12 | 0.2 | 4.8 | 3500 | 0.29 | 16.66 | 40.6 | ||
| YFB7030B24L | Ball | 12 | 0.1 | 2.4 | 2500 | 0.21 | 7.54 | 33.3 | |
| YFB7030B24M | 12 | 0.12 | 2.88 | 3000 | 0.24 | 11.41 | 37 | ||
| YFB7030B24H | 12 | 0.2 | 4.8 | 3500 | 0.29 | 16.66 | 40.6 | ||
| YFB7030B24U | 12 | 0.27 | 6.48 | 4200 | 0.33 | 24.74 | 45.3 | ||
| YFB7030B24E | 12 | 0.38 | 9.12 | 4500 | 0.35 | 26.35 | 47.7 |
FAQ:
Q1: How long are you doing fan business ?
A1:
More than 8years do fan business.
Q2: What is DC Fan and AC fan?
A2:
DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and 72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose DC fan?
A3:
1 size of the fan samples:6025 (60*60*25mm)
2 Voltage 5V/12V/24V/48V
3 current 0.17A
4 speed 5000RPM
5 air flow 25CFM
6 noise 40dBA
7 bearing type:choose ball bearing type or sleeve bearing type ?
8 two wire or three wire 2wire
9 cable length 300mm
10 connector molex 2510 or no connector
11 function FGRDPWMSoft Start ......
Q4: What is the delivery time?
A4:
Sample lead time:5-10 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q5: Can you tell me the normal DC fan Model?
A5:
40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm 60*60*10mm 60*60*15mm 60*60*25mm
80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*32mm 120*120*38mm 140*140*38mm 140*140*50mm
150*150*50mm 172*150*51mm 180*180*60mm 225*225*80mm 280*280*80mmDC Blower Fan 7030 (75×75×30 mm) — Series Overview

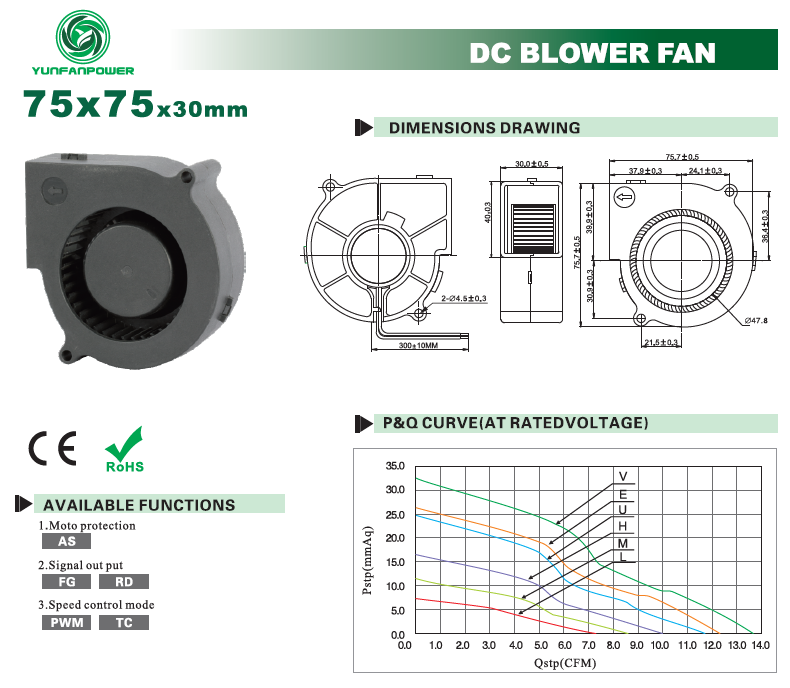

The DC Blower Fan 7030 is a 75×75×30 mm DC brushless centrifugal blower series from Shenzhen Yunfan Power. It operates on 12 / 24 VDC with sleeve and ball bearing options, running 2500–5000 RPM and delivering up to 12.31 CFM with noise levels from 33.3 dBA. Its right-angle centrifugal outlet concentrates airflow through heatsinks, ducts and filters, ideal for projectors, storage nodes, telecom rectifiers and energy-storage cabinets. Wholesale pricing and OEM customization are supported.
Key Features
- High static pressure airflow — The centrifugal impeller exhausts at a right angle, pushing air through heatsinks, ducts and filters where axial fans stall.
- Function options: AS / FG / RD / PWM / TC — Auto restart, tach signal, rotation detection and PWM/TC speed control supported.
- Bearing options for every duty — Sleeve bearing for cost-sensitive builds; ball bearing for long-life 24/7 and any-angle mounting.
- Certified and procurement-ready — CE certified and RoHS compliant; certificates available with shipment.
- OEM / ODM customization — Custom voltage, speed, connectors, lead wires and private labeling from low MOQ.
Applications of the YUNFAN DC Blower Fan Series
- Projectors & optical engines — Directed cooling for DMD/LCD optical blocks in slim enclosures.
- Servers & storage nodes — Focused heatsink cooling where axial fans cannot reach hot spots.
- Telecom rectifiers & energy storage — High-pressure ducted cooling for power modules and battery cabinets.
- Air purifiers & dehumidifiers — Quiet ducted airflow through filters and heat-exchange cores.
- Industrial power supplies — Cooling of dense transformer and IGBT assemblies on DC buses.
Frequently Asked Questions — DC Blower Fan 7030
What is the difference between a DC blower and a DC axial fan?
A blower uses a centrifugal impeller and exhausts air at a right angle, producing higher static pressure — the right choice for heatsinks, ducts, filters and enclosed cabinets. Axial fans suit open, low-resistance paths.
What is the difference between sleeve and ball bearing versions?
Sleeve bearing is the most cost-effective and quietest option, best for horizontal mounting. Ball bearing lasts longer, tolerates any mounting angle and higher ambient temperature — recommended for 24/7 duty.
Can I order the 7030 with custom speed, connector or function options?
Yes. Custom RPM, voltage, lead connectors and function options (FG/RD signal, PWM/TC speed control, AS auto restart) are available. MOQ starts from 100 pieces and samples are supported for testing.
What is your lead time and warranty?
Standard models ship in 7–15 days; custom orders in 20–30 days. All fans carry a 2-year warranty with lifetime technical support.
