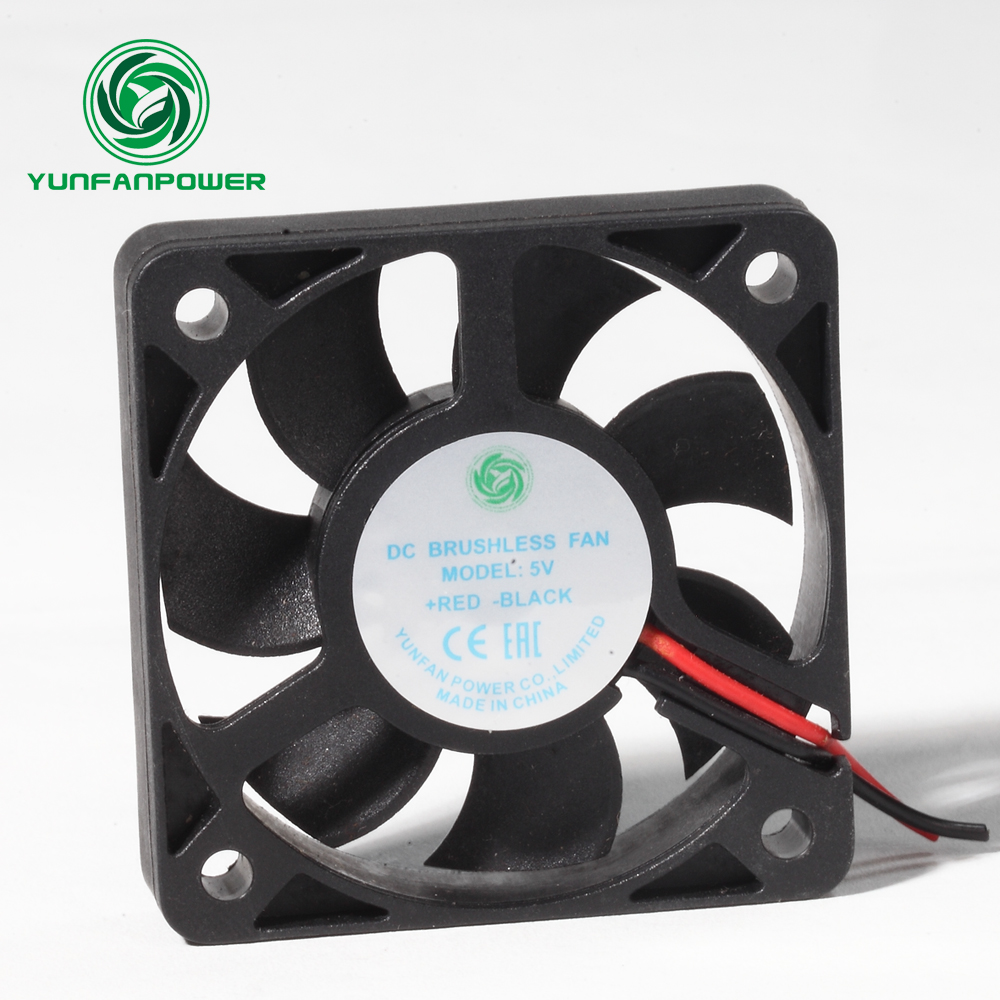

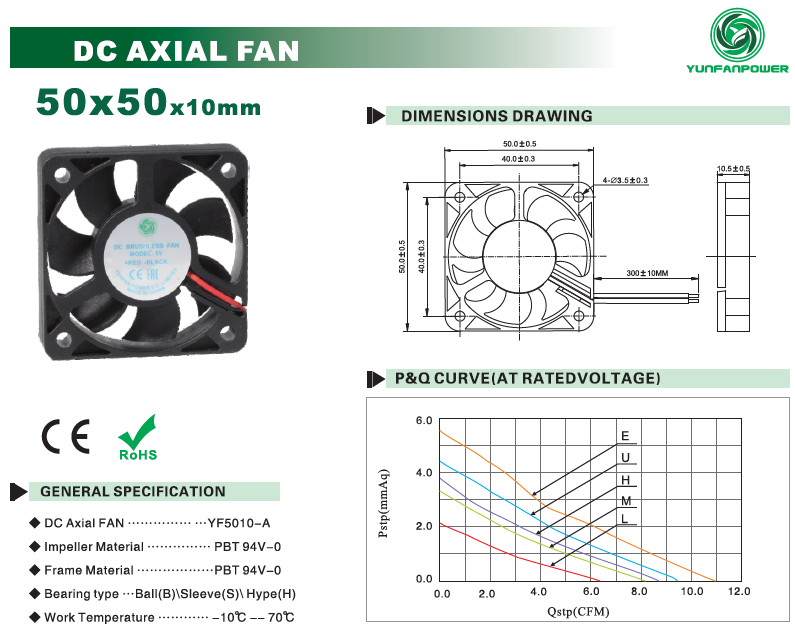

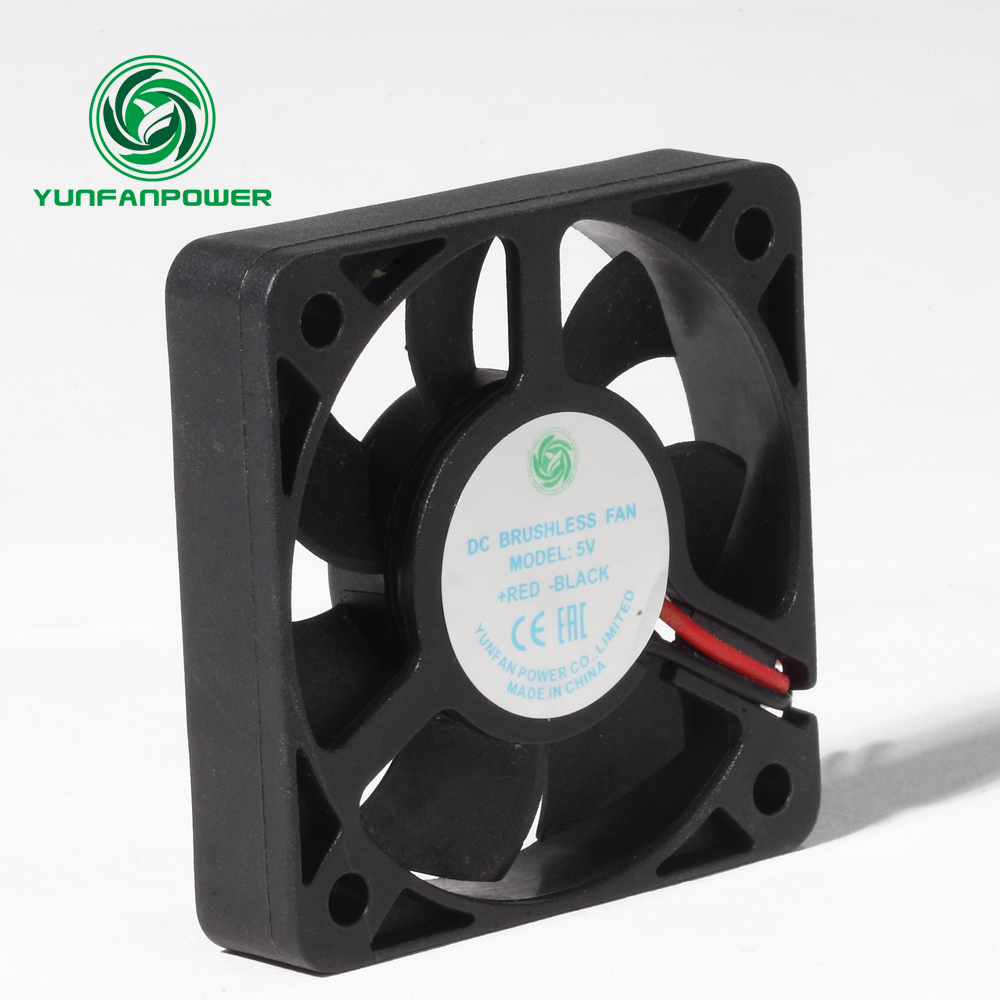

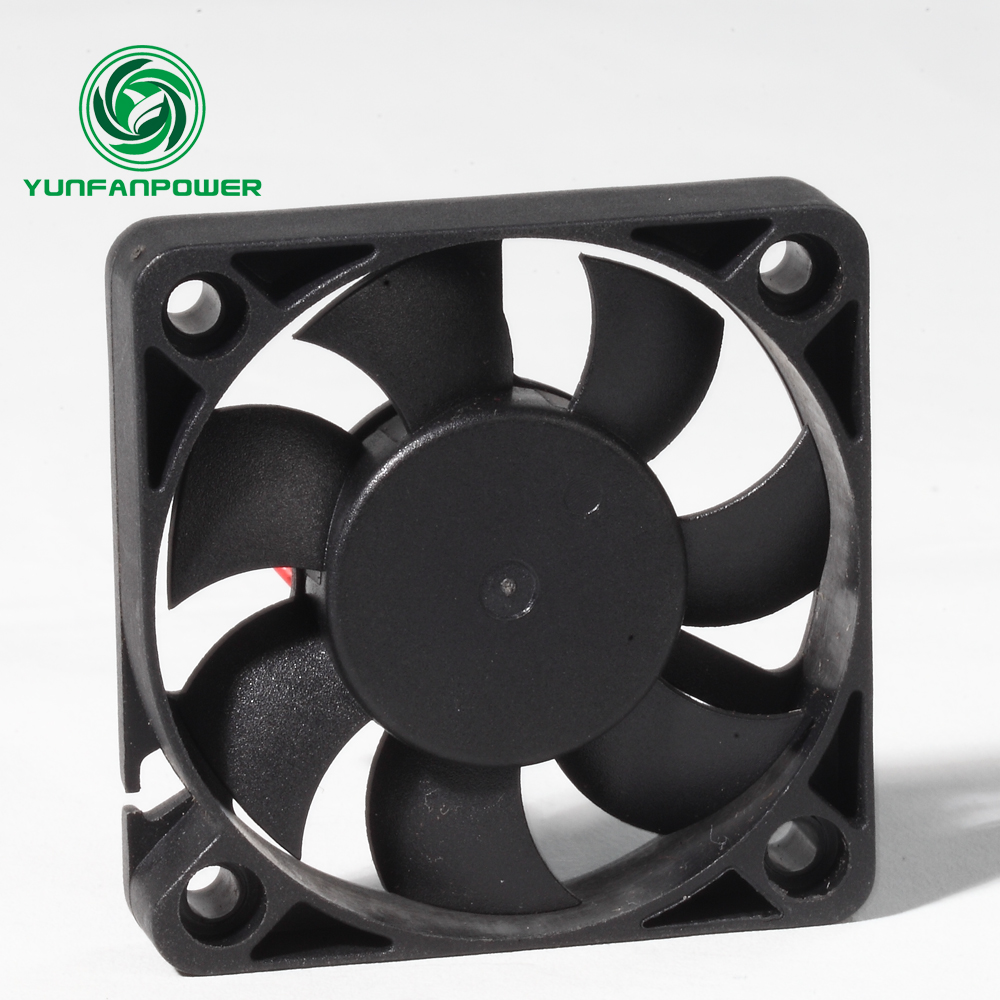

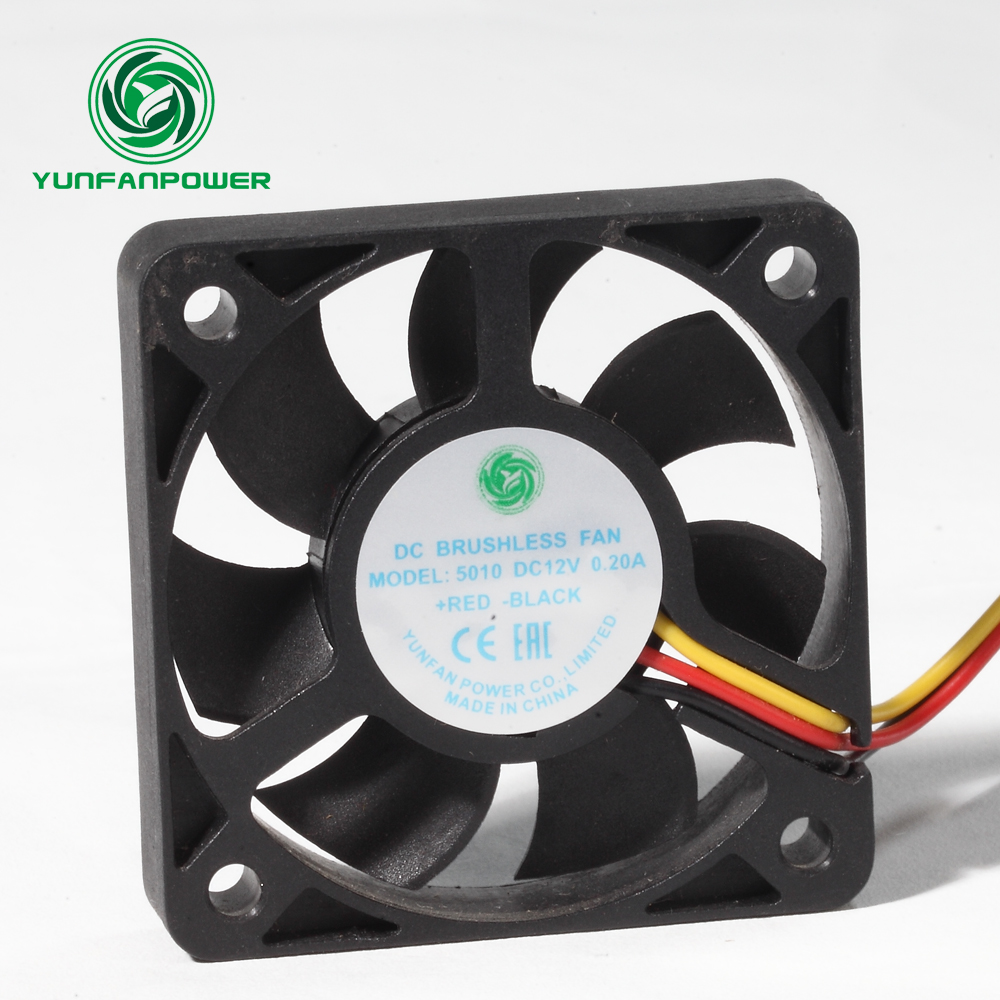

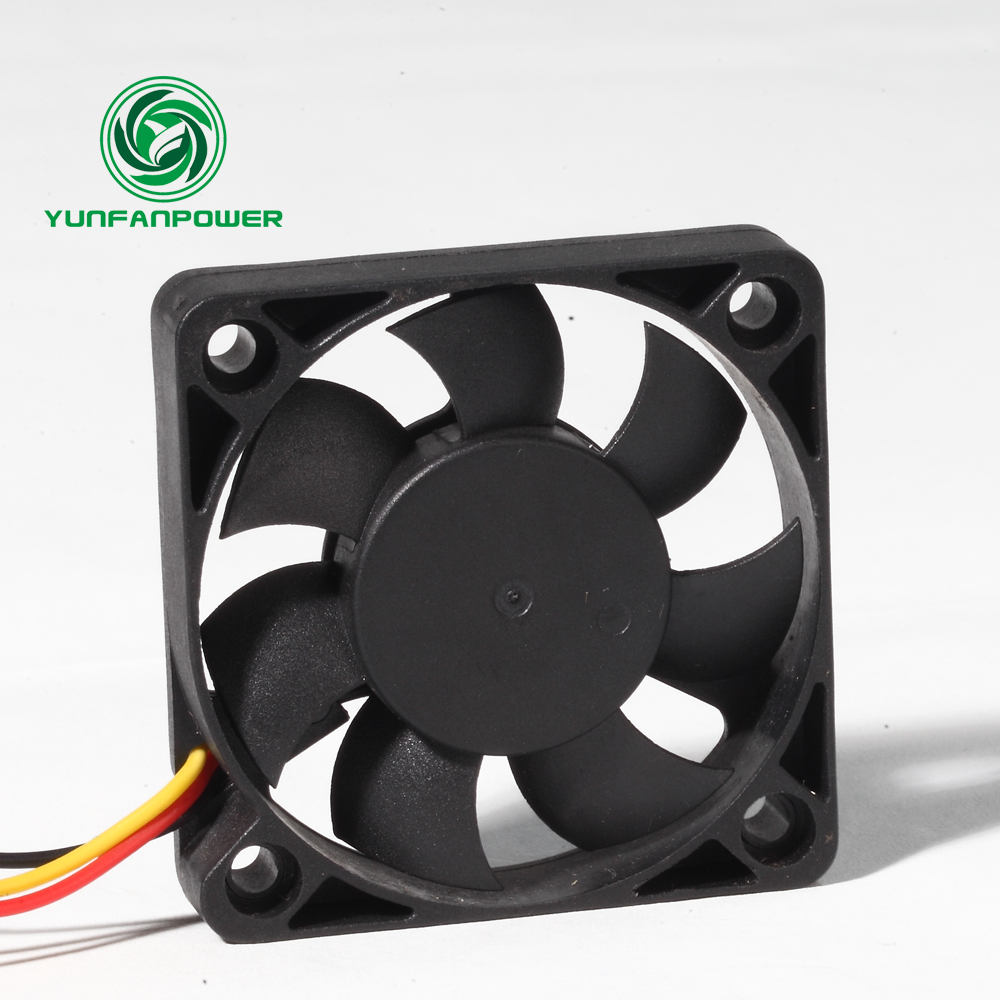

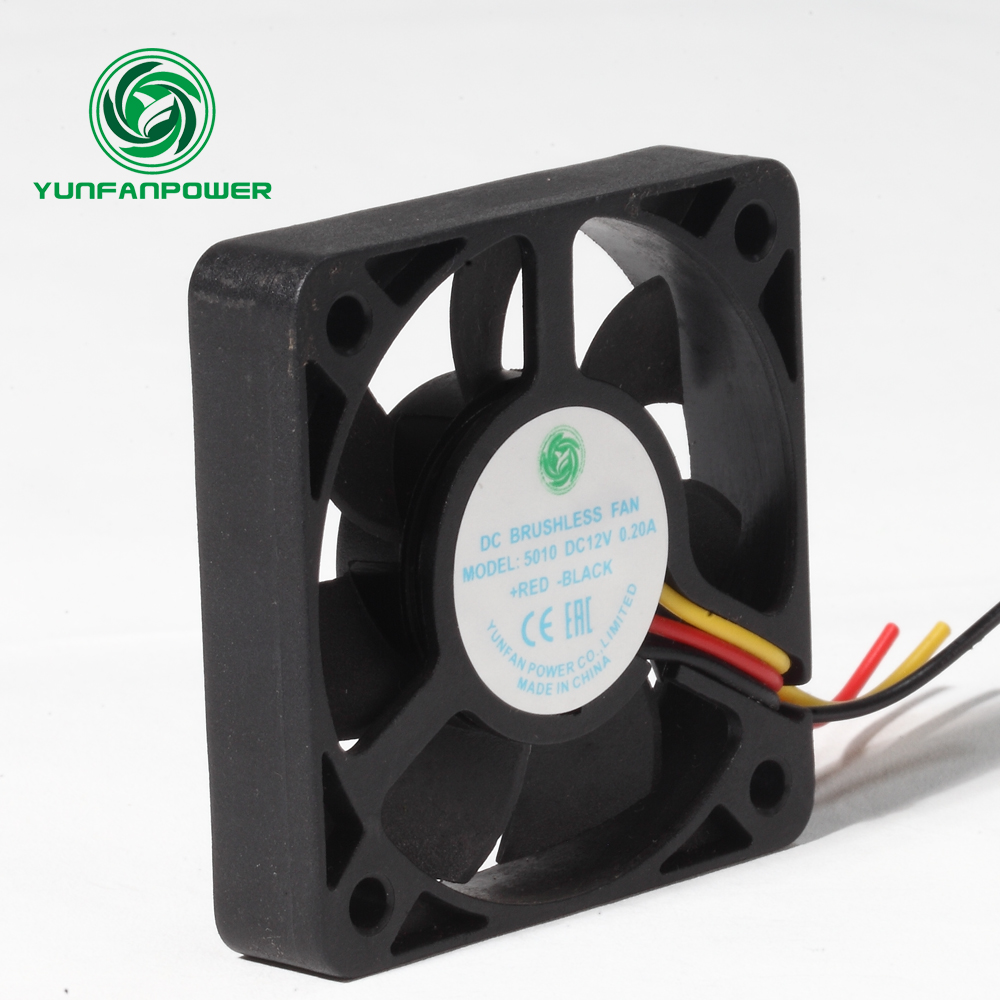

5010 DC FAN 50X10MM
| Applicable Industry | servers,ozone machine,air conditioner,Telecom,industrial,Automotive,consumer,information technology | ||
| Bearing type | double ball bearing type | ||
| Brand Name | YUNFANPOWER | ||
| Fan Size | 50*50*10mm | ||
| Keyword | dc fan,dc axial fan,waterproof fan,high speed cooling fan | ||
| Model Number | DC 5010 | ||
| Voltage support | 5 / 12 / 24 VDC | ||
| Warranty | 2years | ||
| Weight | 20g | ||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise |
|---|---|---|---|---|---|---|---|---|---|
| Part NO. | System | VDC | VDC | A | W | RPM | M^2/min | mmH_2O | dBA |
| YFD5010S05L | Sleeve | 5 | 4 | 0.16 | 0.8 | 4500 | 0.18 | 2.14 | 22.6 |
| YFD5010S05M | 4 | 0.2 | 1 | 5500 | 0.23 | 3.31 | 25.3 | ||
| YFD5010S05H | 4 | 0.22 | 1.1 | 6000 | 0.25 | 3.79 | 26.8 | ||
| YFD5010S05U | 4 | 0.25 | 1.25 | 6500 | 0.27 | 4.42 | 29.9 | ||
| YFD5010S05E | 4 | 0.3 | 1.5 | 7500 | 0.31 | 5.53 | 35.7 | ||
| YFD5010B05L | Ball | 4 | 0.16 | 0.8 | 4500 | 0.18 | 2.14 | 22.6 | |
| YFD5010B05M | 4 | 0.2 | 1 | 5500 | 0.23 | 3.31 | 25.3 | ||
| YFD5010B05H | 4 | 0.22 | 1.1 | 6000 | 0.25 | 3.79 | 26.8 | ||
| YFD5010B05U | 4 | 0.25 | 1.25 | 6500 | 0.27 | 4.42 | 29.9 | ||
| YFD5010B05E | 4 | 0.3 | 1.5 | 7500 | 0.31 | 5.53 | 35.7 | ||
| YFD5010S12L | Sleeve | 12 | 9 | 0.08 | 0.96 | 4500 | 0.18 | 2.14 | 22.6 |
| YFD5010S12M | 7 | 0.1 | 1.2 | 5500 | 0.23 | 3.31 | 25.3 | ||
| YFD5010S12H | 7 | 0.15 | 1.8 | 6000 | 0.25 | 3.79 | 26.8 | ||
| YFD5010S12U | 7 | 0.2 | 2.4 | 6500 | 0.27 | 4.42 | 29.9 | ||
| YFD5010S12E | 7 | 0.24 | 2.88 | 7500 | 0.31 | 5.53 | 35.7 | ||
| YFD5010B12L | Ball | 9 | 0.08 | 0.96 | 4500 | 0.18 | 2.14 | 22.6 | |
| YFD5010B12M | 7 | 0.1 | 1.2 | 5500 | 0.23 | 3.31 | 25.3 | ||
| YFD5010B12H | 7 | 0.15 | 1.8 | 6000 | 0.25 | 3.79 | 26.8 | ||
| YFD5010B12U | 7 | 0.2 | 2.4 | 6500 | 0.27 | 4.42 | 29.9 | ||
| YFD5010B12E | 7 | 0.24 | 2.88 | 7500 | 0.31 | 5.53 | 35.7 | ||
| YFD5010S24L | Sleeve | 24 | 12 | 0.06 | 1.44 | 4500 | 0.18 | 2.14 | 22.6 |
| YFD5010S24M | 12 | 0.09 | 2.16 | 5500 | 0.23 | 3.31 | 25.3 | ||
| YFD5010S24H | 12 | 0.1 | 2.4 | 6000 | 0.25 | 3.79 | 26.8 | ||
| YFD5010S24U | 12 | 0.12 | 2.88 | 6500 | 0.27 | 4.42 | 29.9 | ||
| YFD5010S24E | 12 | 0.15 | 3.6 | 7500 | 0.31 | 5.53 | 35.7 | ||
| YFD5010B24L | Ball | 12 | 0.06 | 1.44 | 4500 | 0.18 | 2.14 | 22.6 | |
| YFD5010B24M | 12 | 0.09 | 2.16 | 5500 | 0.23 | 3.31 | 25.3 | ||
| YFD5010B24H | 12 | 0.1 | 2.4 | 6000 | 0.25 | 3.79 | 26.8 | ||
| YFD5010B24U | 12 | 0.12 | 2.88 | 6500 | 0.27 | 4.42 | 29.9 | ||
| YFD5010B24E | 12 | 0.15 | 3.6 | 7500 | 0.31 | 5.53 | 35.7 |
FAQ:
Q1: How long are you doing fan business ?
A1:
More than 8years do fan business.
Q2: What is DC Fan and AC fan?
A2:
DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and 72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose DC fan?
A3:
1 size of the fan samples:6025 (60*60*25mm)
2 Voltage 5V/12V/24V/48V
3 current 0.17A
4 speed 5000RPM
5 air flow 25CFM
6 noise 40dBA
7 bearing type:choose ball bearing type or sleeve bearing type ?
8 two wire or three wire 2wire
9 cable length 300mm
10 connector molex 2510 or no connector
11 function FGRDPWMSoft Start ......
Q4: What is the delivery time?
A4:
Sample lead time:5-10 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q5: Can you tell me the normal DC fan Model?
A5:
40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm 60*60*10mm 60*60*15mm 60*60*25mm
80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*32mm 120*120*38mm 140*140*38mm 140*140*50mm
150*150*50mm 172*150*51mm 180*180*60mm 225*225*80mm 280*280*80mmDC Axial Fan 5010 (50×50×10 mm) — Series Overview
The DC Axial Fan 5010 is a 50×50×10 mm brushless DC axial cooling fan series from Shenzhen Yunfan Power. It operates on 5 / 12 / 24 VDC with sleeve and ball bearing options, running 4500–7500 RPM and delivering up to 10.97 CFM with noise levels from 22.6 dBA. CE and RoHS certified, it is widely used in routers, set-top boxes, power supplies, servers, telecom cabinets and automotive electronics. Wholesale pricing and OEM customization are supported.
Key Features
- Standard DC voltage platforms — Available on 5 / 12 / 24 VDC rails to match consumer, telecom and industrial boards.
- Function options: FG / RD / PWM — Tach signal (FG), rotation detection (RD) and PWM speed control supported for smart thermal management.
- Bearing options for every duty — Sleeve bearing for cost-sensitive builds; ball bearing for long-life 24/7 and any-angle mounting.
- Certified and procurement-ready — CE certified and RoHS compliant; certificates available with shipment.
- OEM / ODM customization — Custom voltage, speed, connectors, lead wires and private labeling from low MOQ.
Applications of the YUNFAN DC Axial Fan Series
- Consumer electronics — Quiet 5V/12V cooling for routers, set-top boxes, projectors and consoles.
- Power supplies & adapters — Reliable 12V/24V forced-air cooling for PSUs and chargers.
- Servers & storage — High-airflow rack cooling with FG tach monitoring.
- Telecom & network cabinets — 24V/48V cabinet ventilation for edge and BTS equipment.
- Automotive & EV accessories — 12V/24V cooling for on-board chargers and infotainment.
Frequently Asked Questions — DC Axial Fan 5010
What DC voltages are available for the 5010 fan?
The 5010 series covers 5 / 12 / 24 VDC. Custom voltages (e.g. 5V USB-powered or 48V telecom) are available for OEM projects.
What is the difference between sleeve and ball bearing versions?
Sleeve bearing is the most cost-effective and quietest option, best for horizontal mounting. Ball bearing lasts longer, tolerates any mounting angle and higher ambient temperature — recommended for 24/7 duty.
Can I order the 5010 with custom speed, connector or function options?
Yes. Custom RPM, voltage, lead connectors and function options (FG/RD signal, PWM/TC speed control, AS auto restart) are available. MOQ starts from 100 pieces and samples are supported for testing.
What is your lead time and warranty?
Standard models ship in 7–15 days; custom orders in 20–30 days. All fans carry a 2-year warranty with lifetime technical support.
