22580 AC FAN 225*80MM

AC Axial Fan 22580 (225×225×80 mm): 220 / 380 VAC, up to 800 CFM, CE & RoHS. OEM/ODM wholesale from YUNFAN.

Category: Brand:

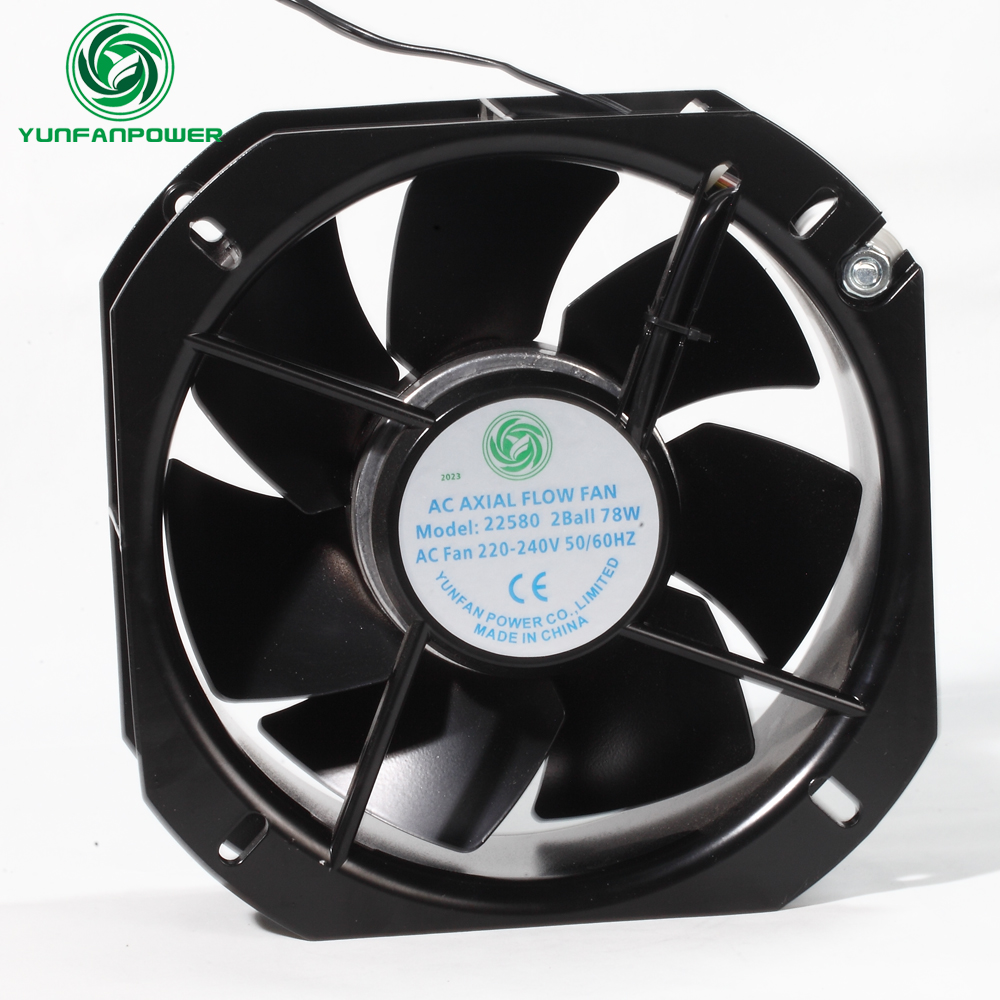

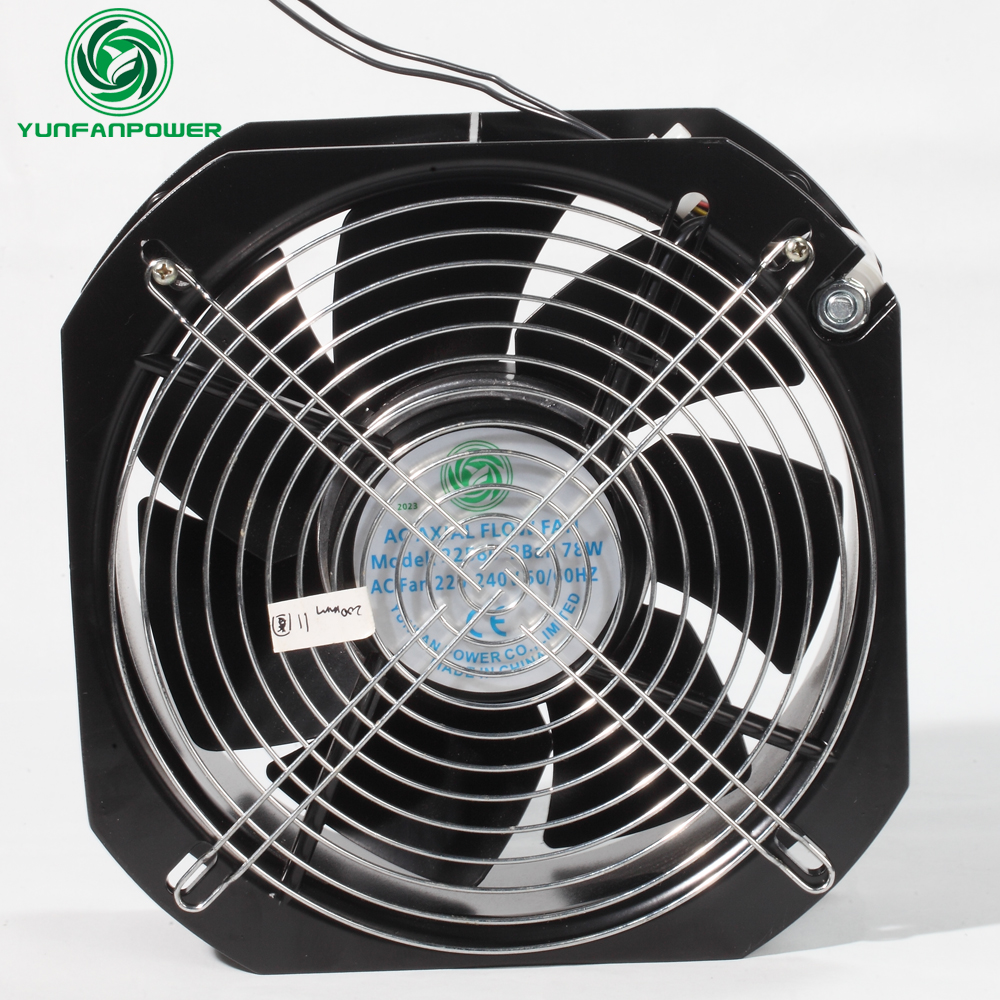

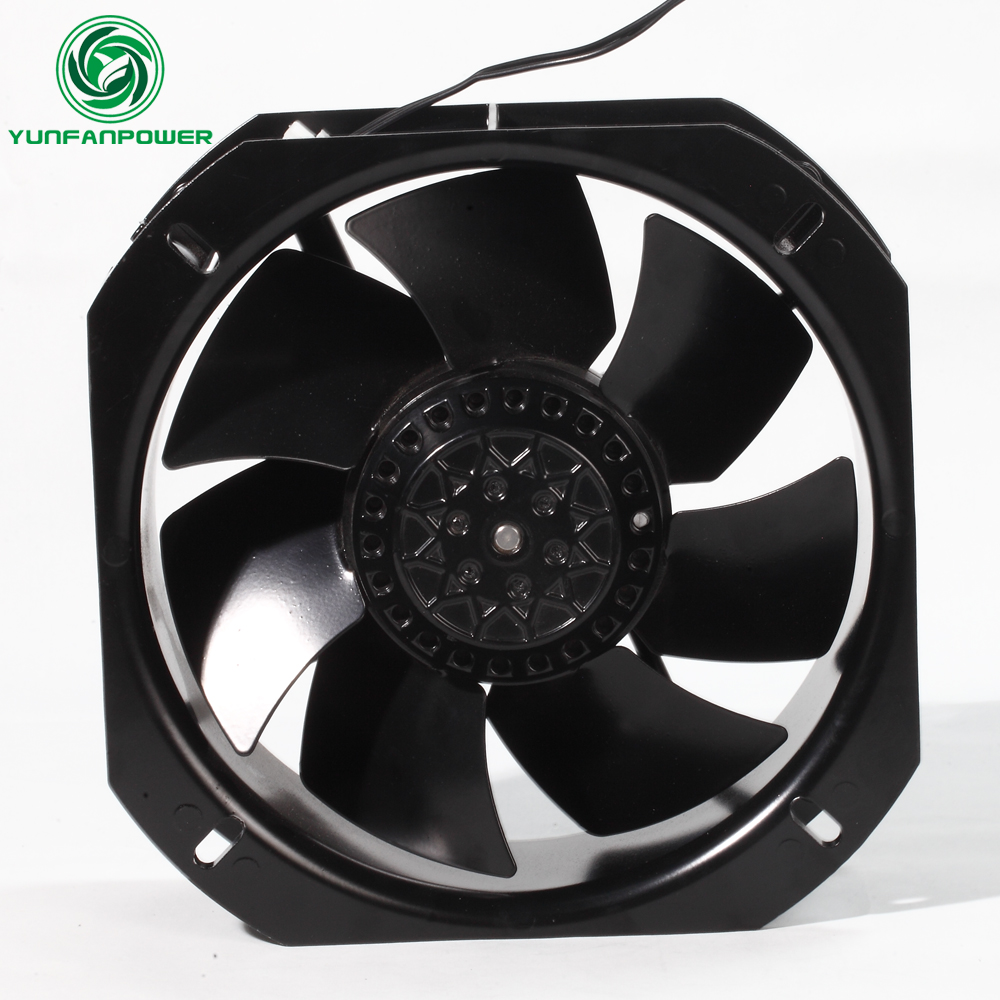

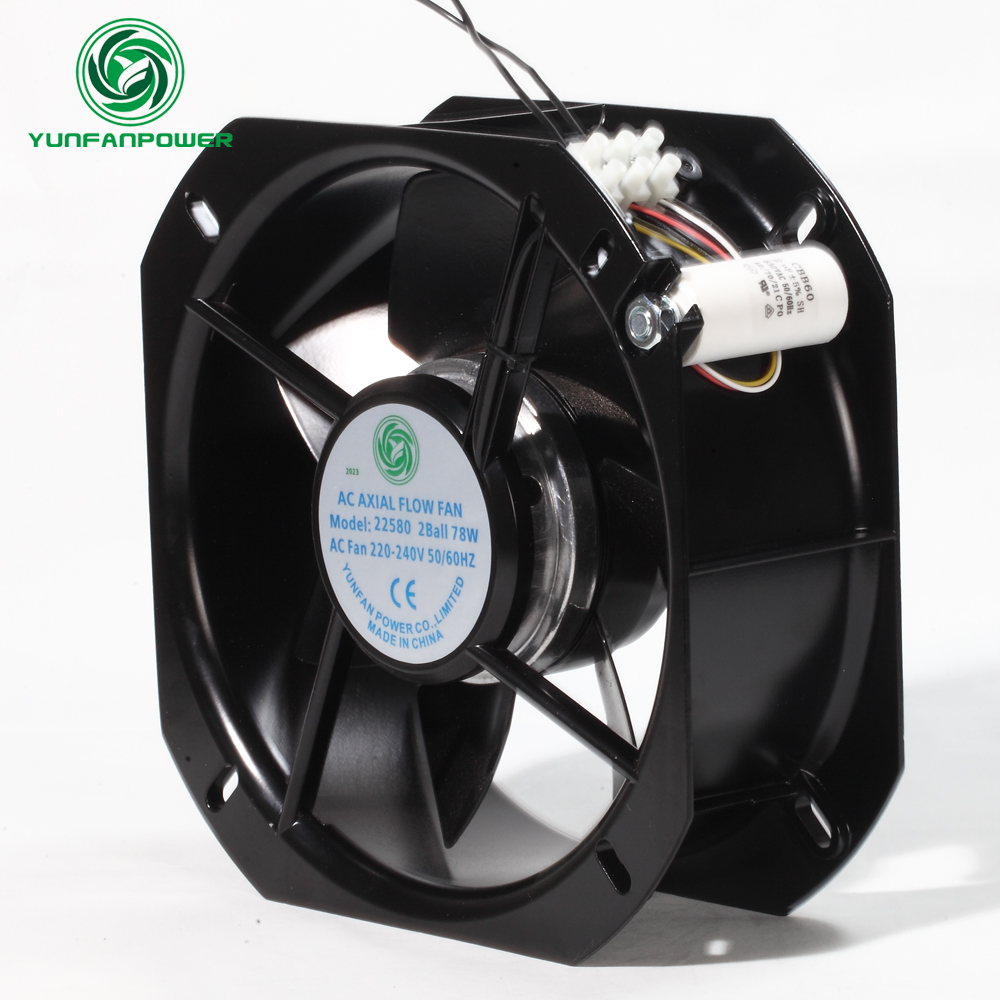

22580 AC FAN 225*80MM

Applicable Industry servers,ozone machine,air conditioner,Telecom,industrial,Automotive,consumer,information technology
Bearing type double ball bearing type
Brand Name YUNFANPOWER

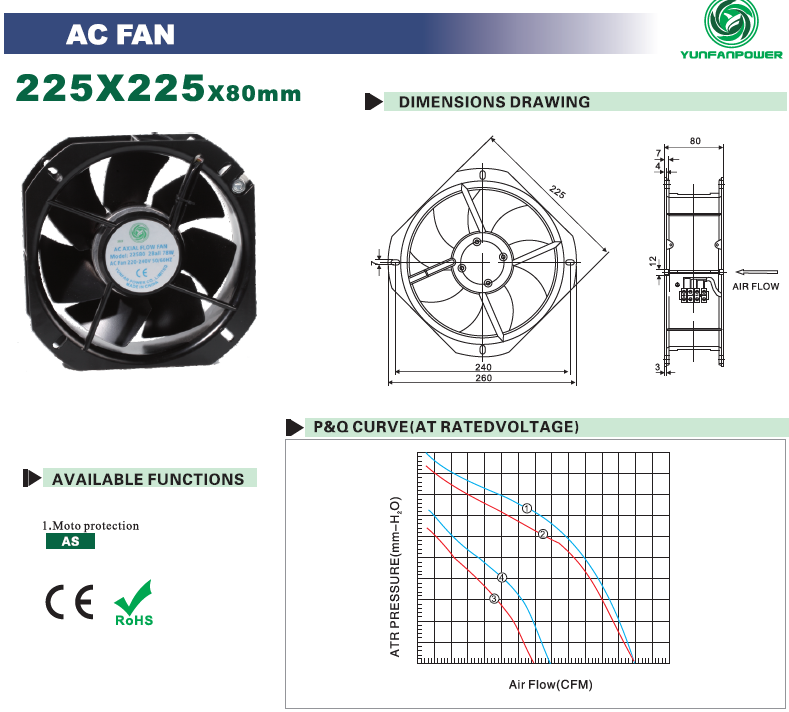

Fan Size 225*225*80mm
Keyword ac fan,ac axial fan,waterproof fan,high speed cooling fan
Model Number AC 22580
Voltage support 220 / 380 VAC
Warranty 2years
Weight 2150g

Model Bearing Rated Voltage Startup Voltage Freq. Current Speed Air Flow Static Pressure Noise
Part NO. System VAC VAC Hz A RPM M^2/min mmH_2O dBA
YFA22580B2E Ball 220 200-240 50/60 0.3 2600 22.72 59
YFA22580B2D 200-240 50/60 0.17 2600 22.72 ╱ 59
YFA22580B3E Ball 380 360/420 50/60 0.2 1470 14.2 / 57
YFA22580B3D 360/420 50/60 0.1 1470 15.3 ╱ 57

Shenzhen Yunfan Power Co.Limited Shenzhen Yunfan Power Co.Limited Shenzhen Yunfan Power Co.Limited Shenzhen Yunfan Power Co.Limited Shenzhen Yunfan Power Co.Limited Shenzhen Yunfan Power Co.Limited Shenzhen Yunfan Power Co.Limited Shenzhen Yunfan Power Co.Limited

FAQ:

Q1: How long are you doing fan business ?

A1:
More than 8years do fan business.

Q2: What is DC Fan and AC fan?

A2:
DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and 72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.

Q3: How to choose DC fan?

A3:
1 size of the fan samples:6025 (60*60*25mm)
2 Voltage 5V/12V/24V/48V
3 current 0.17A
4 speed 5000RPM
5 air flow 25CFM
6 noise 40dBA
7 bearing type:choose ball bearing type or sleeve bearing type ?
8 two wire or three wire 2wire
9 cable length 300mm
10 connector molex 2510 or no connector
11 function FGRDPWMSoft Start ......

Q4: What is the delivery time?

A4:
Sample lead time:5-10 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the  quantity)

Q5: Can you tell me the normal DC fan Model?

A5:
40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm 60*60*10mm 60*60*15mm 60*60*25mm
80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*32mm  120*120*38mm  140*140*38mm  140*140*50mm
150*150*50mm 172*150*51mm  180*180*60mm  225*225*80mm  280*280*80mm


AC Axial Fan 22580 (225×225×80 mm) — Series Overview

The AC Axial Fan 22580 is a 225×225×80 mm AC axial cooling fan series from Shenzhen Yunfan Power. It operates on 220 (200–240) / 380 (360–420) VAC with ball bearing options, running 1470–2600 RPM and delivering up to 800 CFM with noise levels from 57 dBA. CE and RoHS certified, it is widely used in power supplies, inverters, welding machines, cabinets and industrial equipment. Wholesale pricing and OEM customization are supported.

Key Features

  • Direct 110V/220V AC operation — Runs straight from mains via 220 (200–240) / 380 (360–420) VAC, 50/60Hz compatible — no external driver required.
  • Multiple speed grades — From 1470 RPM (low noise) to 2600 RPM (maximum airflow) in the same frame.
  • Bearing options for every duty — Sleeve bearing for cost-sensitive builds; ball bearing for long-life 24/7 and any-angle mounting.
  • Certified and procurement-ready — CE certified and RoHS compliant; certificates available with shipment.
  • OEM / ODM customization — Custom voltage, speed, connectors, lead wires and private labeling from low MOQ.

Applications of the YUNFAN AC Axial Fan Series

  • Switching power supplies & inverters — Forced-air cooling for PSUs, solar inverters and frequency converters.
  • Welding & industrial machines — Cabinet and transformer cooling for welders, CNC and packaging equipment.
  • Control cabinets & panels — Panel ventilation for distribution boxes and automation cabinets.
  • Greenhouses & ventilation — Wall-mounted exhaust and circulation for agricultural ventilation.
  • Refrigeration & commercial cooling — Condenser cooling for display cabinets and cold-chain equipment.

Frequently Asked Questions — AC Axial Fan 22580

What voltages are available for the 22580 AC axial fan?

The 22580 series operates on 220 (200–240) / 380 (360–420) VAC, 50/60Hz. Custom voltages (e.g. 380V) are available for OEM projects.

What is the difference between sleeve and ball bearing versions?

Sleeve bearing is the most cost-effective and quietest option, best for horizontal mounting. Ball bearing lasts longer, tolerates any mounting angle and higher ambient temperature — recommended for 24/7 duty.

Can I order the 22580 with custom speed, connector or function options?

Yes. Custom RPM, voltage, lead connectors and function options (FG/RD signal, PWM/TC speed control, AS auto restart) are available. MOQ starts from 100 pieces and samples are supported for testing.

What is your lead time and warranty?

Standard models ship in 7–15 days; custom orders in 20–30 days. All fans carry a 2-year warranty with lifetime technical support.
