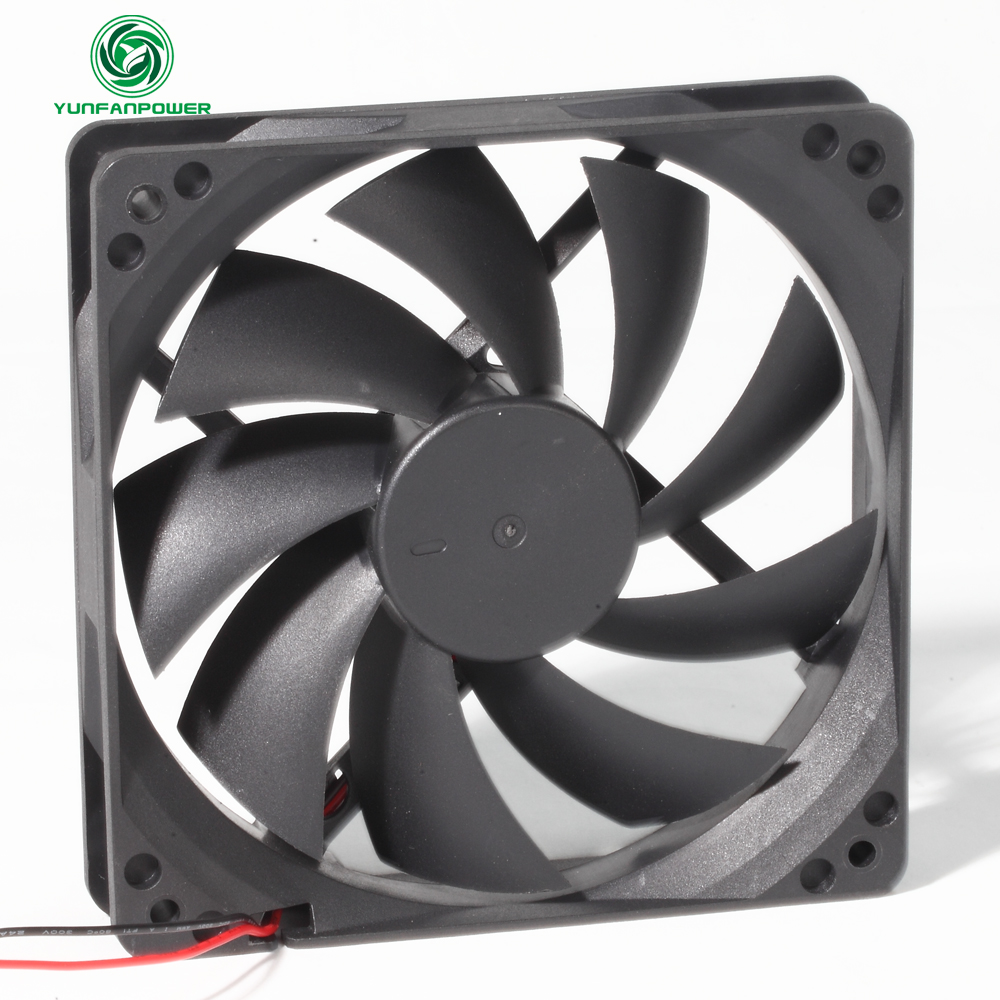

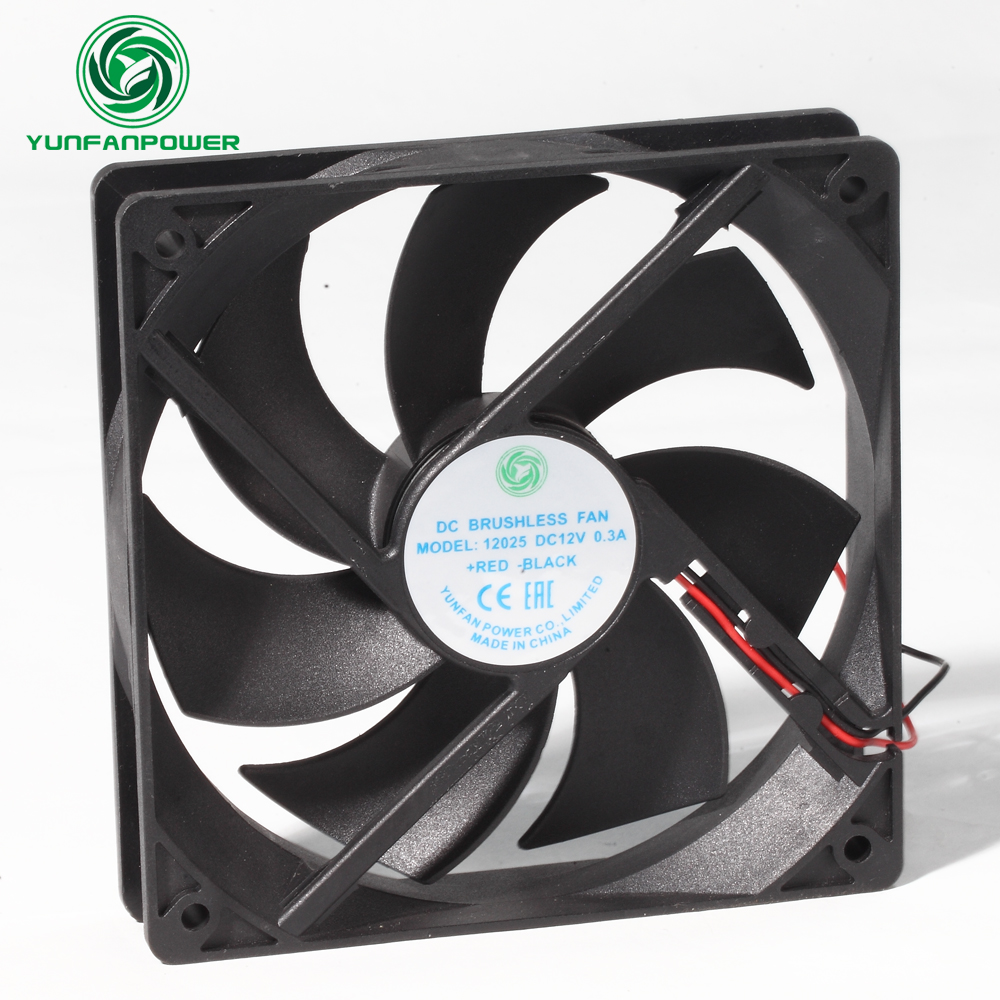

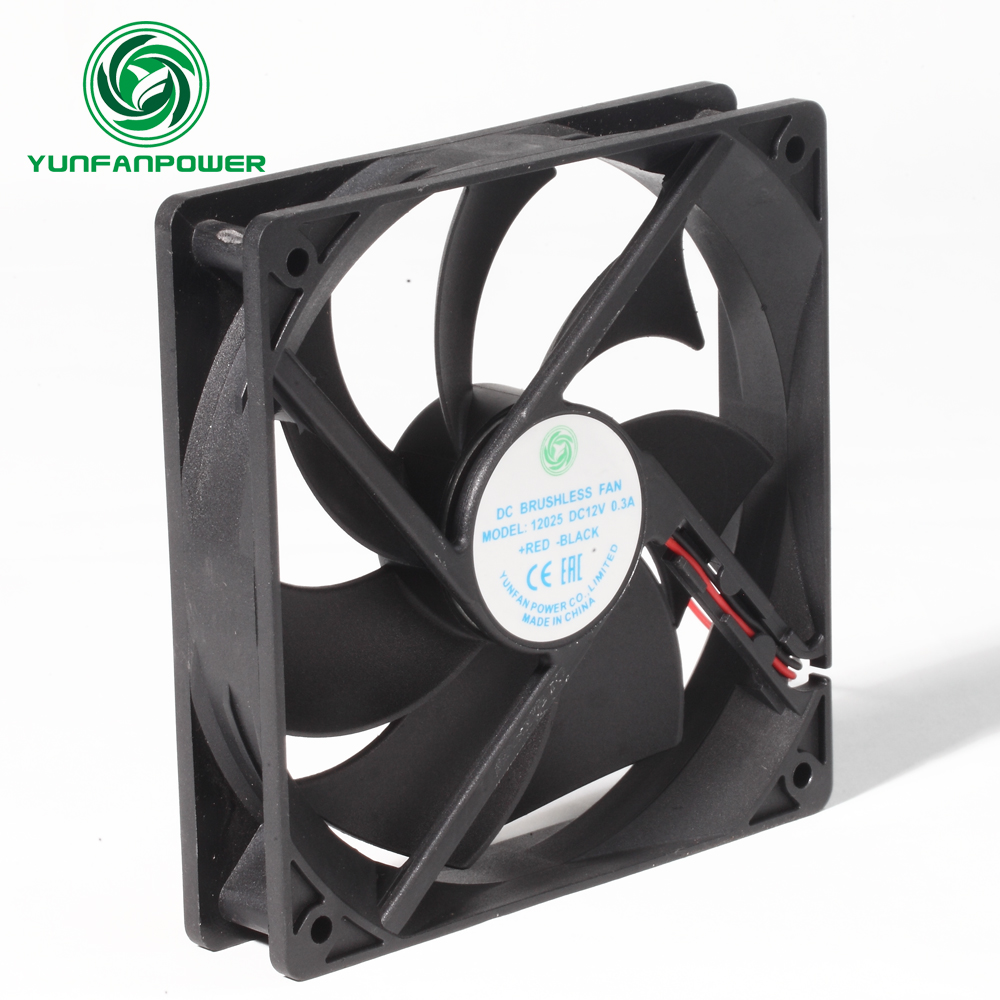

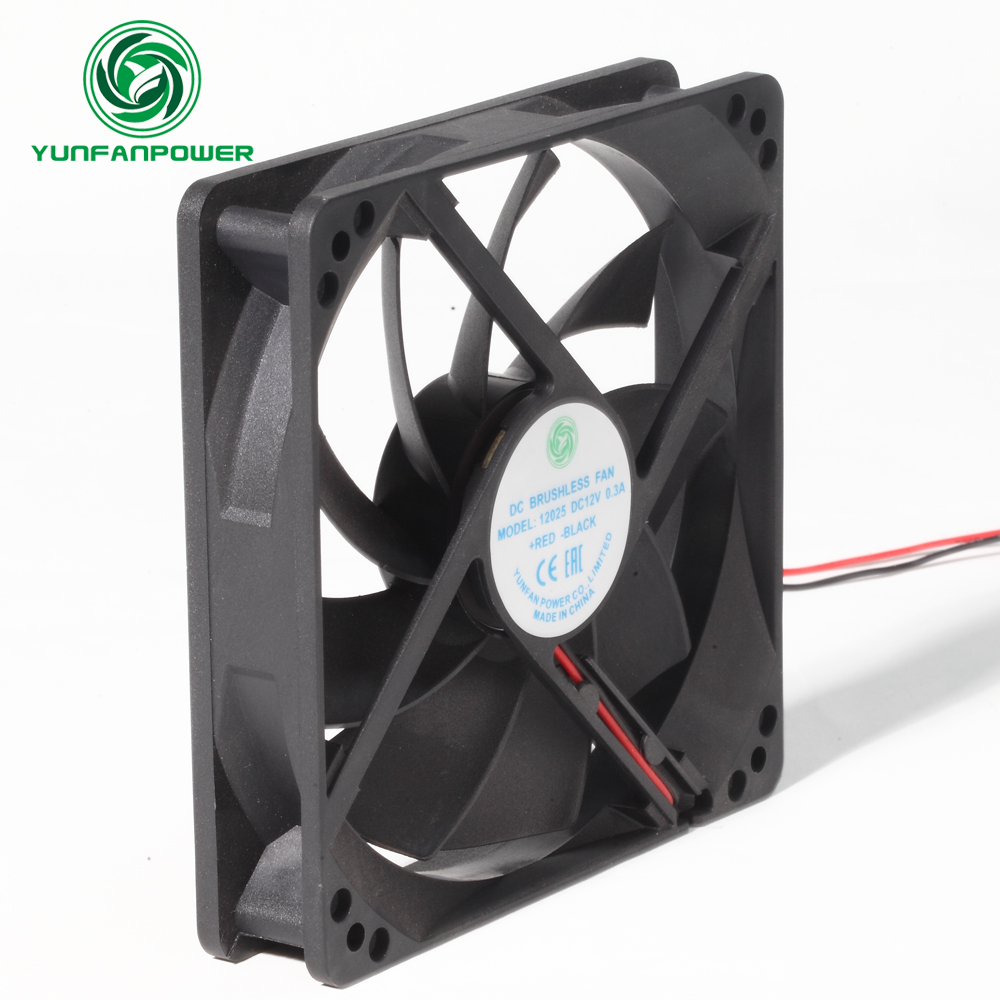

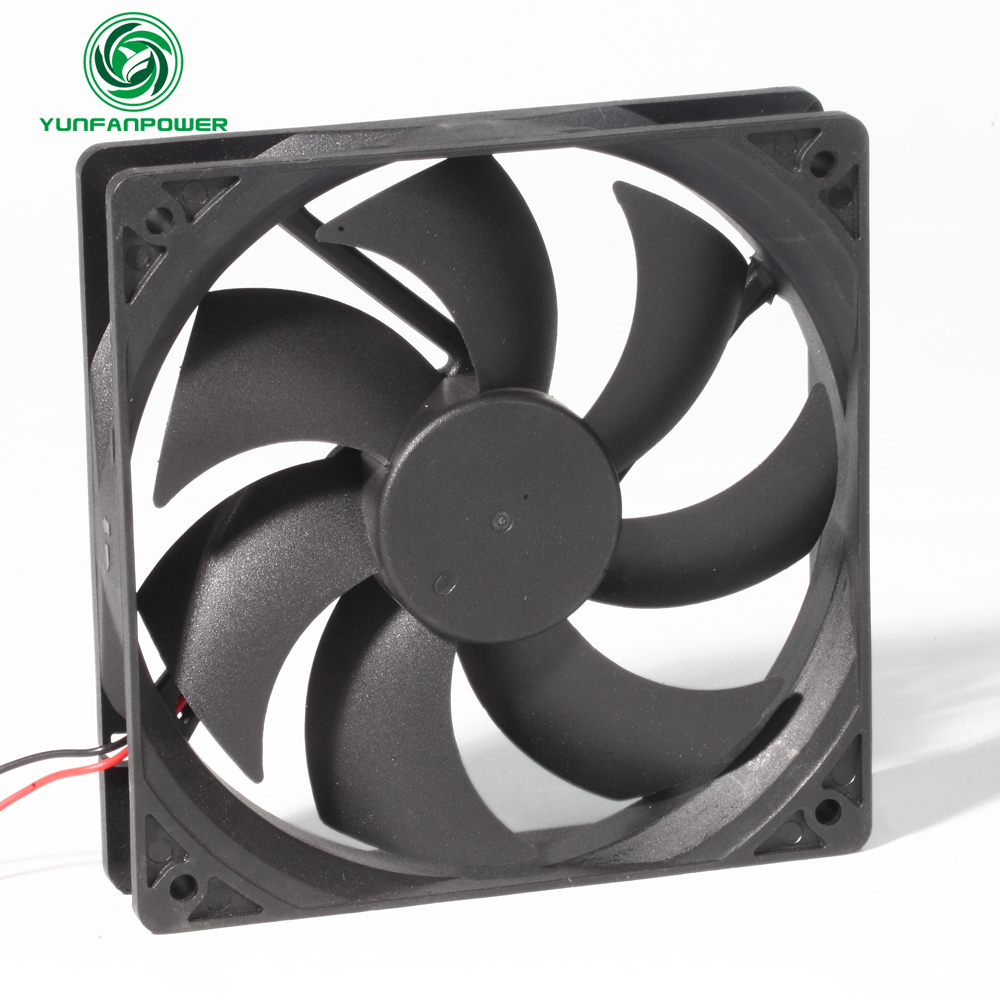

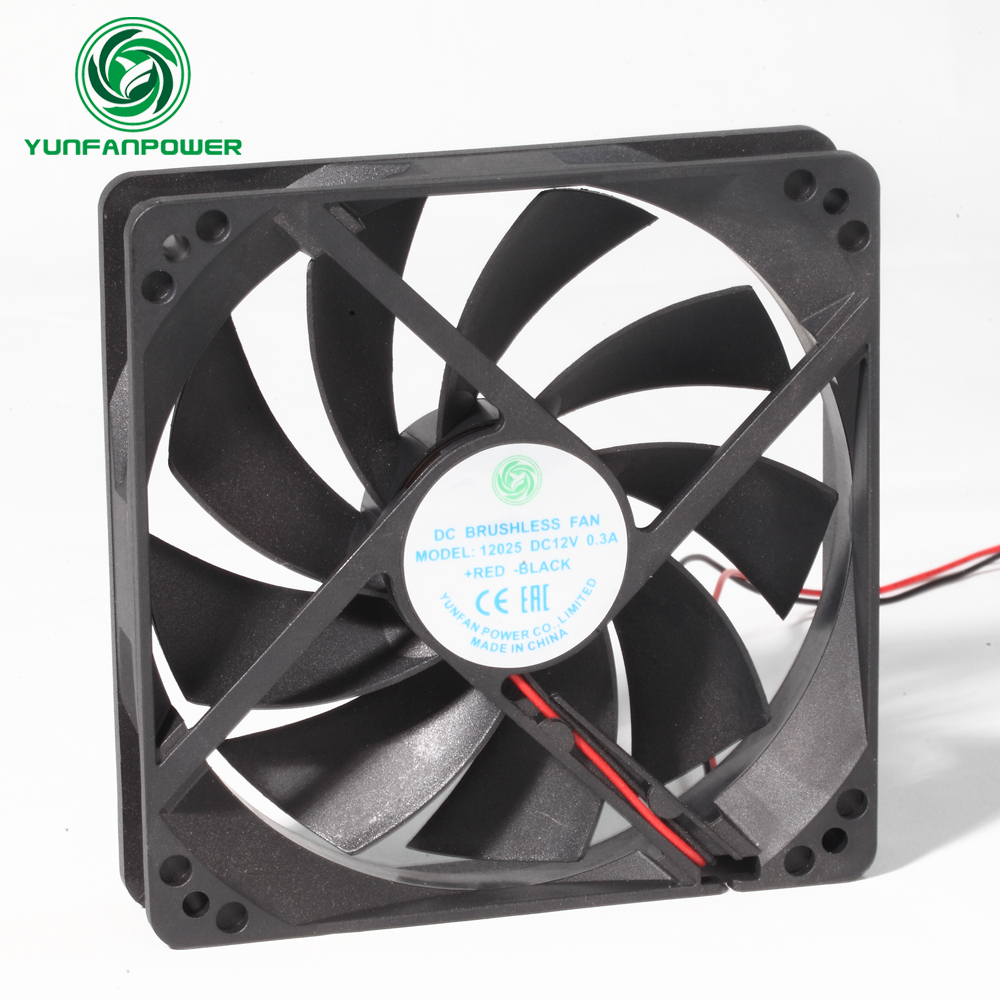

12025 DC FAN 120X25MM

DC Axial Fan 12025 (120×120×25 mm): 12 / 24 VDC, up to 96.51 CFM, CE & RoHS. OEM/ODM wholesale from YUNFAN.

Category: Brand:

12025 DC FAN 120X25MM

Applicable Industry servers,ozone machine,air conditioner,Telecom,industrial,Automotive,consumer,information technology
Bearing type double ball bearing type
Brand Name YUNFANPOWER
Fan Size 120*120*25mm
Keyword dc fan,dc axial fan,waterproof fan,high speed cooling fan
Model Number DC 12025
Voltage support 12 / 24 VDC
Warranty 2years
Weight 124g

Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part NO. System VDC VDC A W RPM M^2/min mmH_2O dBA
YFD12025H12L-4 Hydraulic 12 5 0.32 3.84 2300 2.18 3.15 39.1
YFD12025H12M-4 5 0.24 2.88 2000 1.72 2.04 35.4
YFD12025H12H-4 5 0.18 2.16 1700 1.61 1.5 32.6
YFD12025B12L-4 Ball 5 0.42 5.04 2800 2.73 4.7 44.3
YFD12025B12M-4 5 0.32 3.84 2300 2.18 3.15 39.1
YFD12025B12H-4 5 0.24 2.88 2000 1.72 2.04 35.4
YFD12025B12U-4 5 0.18 2.16 1700 1.61 1.5 32.6
YFD12025H24L-4 Hydraulic 24 12 0.2 4.8 2300 2.18 3.15 39.1
YFD12025H24M-4 12 0.15 3.6 2000 1.72 2.04 35.4
YFD12025H24H-4 12 0.12 2.88 1700 1.61 1.5 32.6
YFD12025B24L-4 Ball 12 0.3 7.2 2800 2.73 4.7 44.3
YFD12025B24M-4 12 0.2 4.8 2300 2.18 3.15 39.1
YFD12025B24H-4 12 0.15 3.6 2000 1.72 2.04 35.4
YFD12025B24U-4 12 0.12 2.88 1700 1.61 1.5 32.6
Shenzhen Yunfan Power Co.Limited

Shenzhen Yunfan Power Co.Limited

Shenzhen Yunfan Power Co.Limited

Shenzhen Yunfan Power Co.Limited

Shenzhen Yunfan Power Co.Limited

Shenzhen Yunfan Power Co.Limited

Shenzhen Yunfan Power Co.Limited

Shenzhen Yunfan Power Co.Limited

FAQ:

Q1: How long are you doing fan business ?

A1:
More than 8years do fan business.

Q2: What is DC Fan and AC fan?

A2:
DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and 72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.

Q3: How to choose DC fan?

A3:
1 size of the fan samples:6025 (60*60*25mm)
2 Voltage 5V/12V/24V/48V
3 current 0.17A
4 speed 5000RPM
5 air flow 25CFM
6 noise 40dBA
7 bearing type:choose ball bearing type or sleeve bearing type ?
8 two wire or three wire 2wire
9 cable length 300mm
10 connector molex 2510 or no connector
11 function FGRDPWMSoft Start ......

Q4: What is the delivery time?

A4:
Sample lead time:5-10 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the  quantity)

Q5: Can you tell me the normal DC fan Model?

A5:
40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm 60*60*10mm 60*60*15mm 60*60*25mm
80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*32mm  120*120*38mm  140*140*38mm  140*140*50mm
150*150*50mm 172*150*51mm  180*180*60mm  225*225*80mm  280*280*80mm


DC Axial Fan 12025 (120×120×25 mm) — Series Overview

The DC Axial Fan 12025 is a 120×120×25 mm brushless DC axial cooling fan series from Shenzhen Yunfan Power. It operates on 12 / 24 VDC with hydraulic and ball bearing options, running 1700–2800 RPM and delivering up to 96.51 CFM with noise levels from 32.7 dBA. CE and RoHS certified, it is widely used in routers, set-top boxes, power supplies, servers, telecom cabinets and automotive electronics. Wholesale pricing and OEM customization are supported.

Key Features

  • Standard DC voltage platforms — Available on 12 / 24 VDC rails to match consumer, telecom and industrial boards.
  • Function options: FG / RD / PWM — Tach signal (FG), rotation detection (RD) and PWM speed control supported for smart thermal management.
  • Bearing options for every duty — Sleeve bearing for cost-sensitive builds; ball bearing for long-life 24/7 and any-angle mounting.
  • Certified and procurement-ready — CE certified and RoHS compliant; certificates available with shipment.
  • OEM / ODM customization — Custom voltage, speed, connectors, lead wires and private labeling from low MOQ.

Applications of the YUNFAN DC Axial Fan Series

  • Consumer electronics — Quiet 5V/12V cooling for routers, set-top boxes, projectors and consoles.
  • Power supplies & adapters — Reliable 12V/24V forced-air cooling for PSUs and chargers.
  • Servers & storage — High-airflow rack cooling with FG tach monitoring.
  • Telecom & network cabinets — 24V/48V cabinet ventilation for edge and BTS equipment.
  • Automotive & EV accessories — 12V/24V cooling for on-board chargers and infotainment.

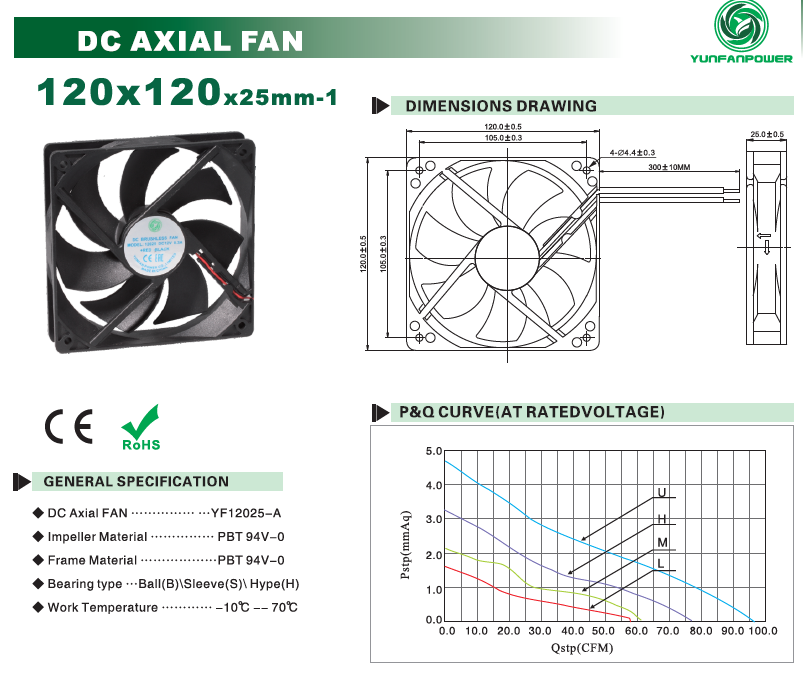

Technical Specifications — Datasheet Sheet 1

Full model list of the 12025 series (120x120x25mm), 14 part numbers:

Model Bearing System Rated Voltage VDC Startup Voltage VDC Current A Power W Speed RPM M3/min CFM mmH2O INH2O dBA
YFD12025H12L-1 Hydraulic 12 5.0 0.18 2.16 1700 1.62 57.31 1.60 0.06 32.7
YFD12025H12M-1 Hydraulic 12 5.0 0.24 2.88 2000 1.73 61.09 2.14 0.08 35.5
YFD12025H12H-1 Hydraulic 12 5.0 0.32 3.84 2300 2.19 77.30 3.25 0.13 39.0
YFD12025B12L-1 Ball 12 5.0 0.18 2.16 1700 1.62 57.31 1.60 0.06 32.7
YFD12025B12M-1 Ball 12 5.0 0.24 2.88 2000 1.73 61.09 2.14 0.08 35.5
YFD12025B12H-1 Ball 12 5.0 0.32 3.84 2300 2.19 77.30 3.25 0.13 39.0
YFD12025B12U-1 Ball 12 5.0 0.42 5.04 2800 2.73 96.51 4.70 0.19 44.4
YFD12025H24L-1 Hydraulic 24 12.0 0.12 2.88 1700 1.62 57.31 1.60 0.06 32.7
YFD12025H24M-1 Hydraulic 24 12.0 0.15 3.60 2000 1.73 61.09 2.14 0.08 35.5
YFD12025H24H-1 Hydraulic 24 12.0 0.20 4.80 2300 2.19 77.30 3.25 0.13 39.0
YFD12025B24L-1 Ball 24 12.0 0.12 2.88 1700 1.62 57.31 1.60 0.06 32.7
YFD12025B24M-1 Ball 24 12.0 0.15 3.60 2000 1.73 61.09 2.14 0.08 35.5
YFD12025B24H-1 Ball 24 12.0 0.20 4.80 2300 2.19 77.30 3.25 0.13 39.0
YFD12025B24U-1 Ball 24 12.0 0.30 7.20 2800 2.73 96.51 4.70 0.19 44.4

Technical Specifications — Datasheet Sheet 2

Full model list of the 12025 series (120x120x25mm), 32 part numbers:

Model Bearing System Rated Voltage VDC Startup Voltage VDC Current A Power W Speed RPM M3/min CFM mmH2O INH2O dBA
YFD12025H12L-2 Hydraulic 12 5.0 0.18 2.16 2000 1.85 65.38 3.29 0.13 35.5
YFD12025H12M-2 Hydraulic 12 5.0 0.24 2.88 2400 2.24 79.20 4.72 0.19 39.1
YFD12025H12H-2 Hydraulic 12 5.0 0.32 3.84 2800 2.57 90.70 6.20 0.24 43.0
YFD12025H12U-2 Hydraulic 12 5.0 0.42 5.04 3200 2.94 103.76 7.61 0.30 46.8
YFD12025H12E-2 Hydraulic 12 5.0 0.55 6.60 3600 3.29 116.32 9.19 0.36 49.9
YFD12025B12L-2 Ball 12 5.0 0.18 2.16 2000 1.85 65.38 3.29 0.13 35.5
YFD12025B12M-2 Ball 12 5.0 0.24 2.88 2400 2.24 79.20 4.72 0.19 39.1
YFD12025B12H-2 Ball 12 5.0 0.32 3.84 2800 2.57 90.70 6.20 0.24 43.0
YFD12025B12U-2 Ball 12 5.0 0.42 5.04 3200 2.94 103.76 7.61 0.30 46.8
YFD12025B12E-2 Ball 12 5.0 0.55 6.60 3600 3.29 116.32 9.19 0.36 49.9
YFD12025H24L-2 Hydraulic 24 12.0 0.12 2.88 2000 1.85 65.38 3.29 0.13 35.5
YFD12025H24M-2 Hydraulic 24 12.0 0.15 3.60 2400 2.24 79.20 4.72 0.19 39.1
YFD12025H24H-2 Hydraulic 24 12.0 0.20 4.80 2800 2.57 90.70 6.20 0.24 43.0
YFD12025H24U-2 Hydraulic 24 12.0 0.30 7.20 3200 2.94 103.76 7.61 0.30 46.8
YFD12025H24E-2 Hydraulic 24 12.0 0.40 9.60 3600 3.29 116.32 9.19 0.36 49.9
YFD12025B24L-2 Ball 24 12.0 0.12 2.88 2000 1.85 65.38 3.29 0.13 35.5
YFD12025B24M-2 Ball 24 12.0 0.15 3.60 2400 2.24 79.20 4.72 0.19 39.1
YFD12025B24H-2 Ball 24 12.0 0.20 4.80 2800 2.57 90.70 6.20 0.24 43.0
YFD12025B24U-2 Ball 24 12.0 0.30 7.20 3200 2.94 103.76 7.61 0.30 46.8
YFD12025B24E-2 Ball 24 12.0 0.40 9.60 3600 3.29 116.32 9.19 0.36 49.9
YFD12025B24V-2 Ball 24 12.0 0.50 12.00 4000 3.58 126.36 10.90 0.43 52.0
YFD12025H48L-2 Hydraulic 48 24.0 0.08 3.84 2000 1.85 65.38 3.29 0.13 35.5
YFD12025H48M-2 Hydraulic 48 24.0 0.10 4.80 2400 2.24 79.20 4.72 0.19 39.1
YFD12025H48H-2 Hydraulic 48 24.0 0.14 6.72 2800 2.57 90.70 6.20 0.24 43.0
YFD12025H48U-2 Hydraulic 48 24.0 0.18 8.64 3200 2.94 103.76 7.61 0.30 46.8
YFD12025H48E-2 Hydraulic 48 24.0 0.25 12.00 3600 3.29 116.32 9.19 0.36 49.9
YFD12025B48L-2 Ball 48 24.0 0.08 3.84 2000 1.85 65.38 3.29 0.13 35.5
YFD12025B48M-2 Ball 48 24.0 0.10 4.80 2400 2.24 79.20 4.72 0.19 39.1
YFD12025B48H-2 Ball 48 24.0 0.14 6.72 2800 2.57 90.70 6.20 0.24 43.0
YFD12025B48U-2 Ball 48 24.0 0.18 8.64 3200 2.94 103.76 7.61 0.30 46.8
YFD12025B48E-2 Ball 48 24.0 0.25 12.00 3600 3.29 116.32 9.19 0.36 49.9
YFD12025B48V-2 Ball 48 24.0 0.32 15.36 4000 3.58 126.36 10.90 0.43 52.0

Technical Specifications — Datasheet Sheet 3

Full model list of the 12025 series (120x120x25mm), 3 part numbers:

Model Bearing System Rated Voltage VDC Startup Voltage VDC Current A Power W Speed RPM M3/min CFM mmH2O INH2O dBA
YFD12025B12V-3 Ball 12 5.0 0.65 7.80 5500 3.25 114.70 21.10 0.83 55.5
YFD12025B24V-3 Ball 24 12.0 0.40 9.60 5500 3.25 114.70 21.10 0.83 55.5
YFD12025B48V-3 Ball 48 24.0 0.25 12.00 5500 3.25 114.70 21.10 0.83 55.5

Frequently Asked Questions — DC Axial Fan 12025

What DC voltages are available for the 12025 fan?

The 12025 series covers 12 / 24 VDC. Custom voltages (e.g. 5V USB-powered or 48V telecom) are available for OEM projects.

What is the difference between sleeve and ball bearing versions?

Sleeve bearing is the most cost-effective and quietest option, best for horizontal mounting. Ball bearing lasts longer, tolerates any mounting angle and higher ambient temperature — recommended for 24/7 duty.

Can I order the 12025 with custom speed, connector or function options?

Yes. Custom RPM, voltage, lead connectors and function options (FG/RD signal, PWM/TC speed control, AS auto restart) are available. MOQ starts from 100 pieces and samples are supported for testing.

What is your lead time and warranty?

Standard models ship in 7–15 days; custom orders in 20–30 days. All fans carry a 2-year warranty with lifetime technical support.
