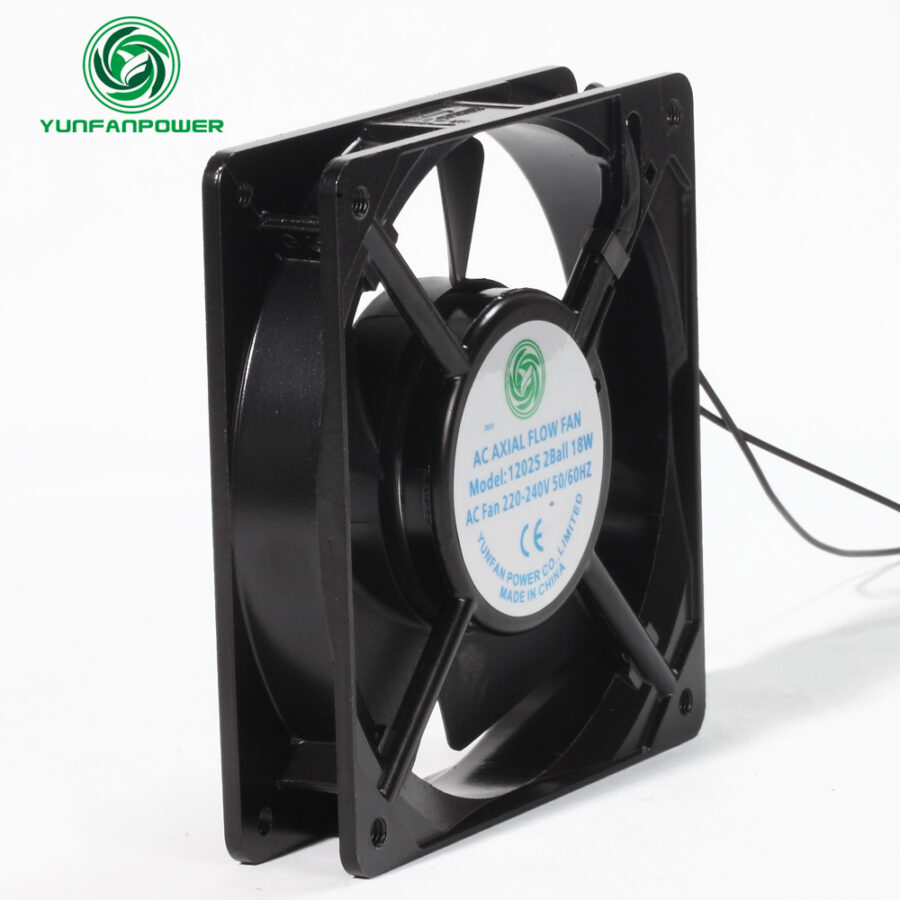

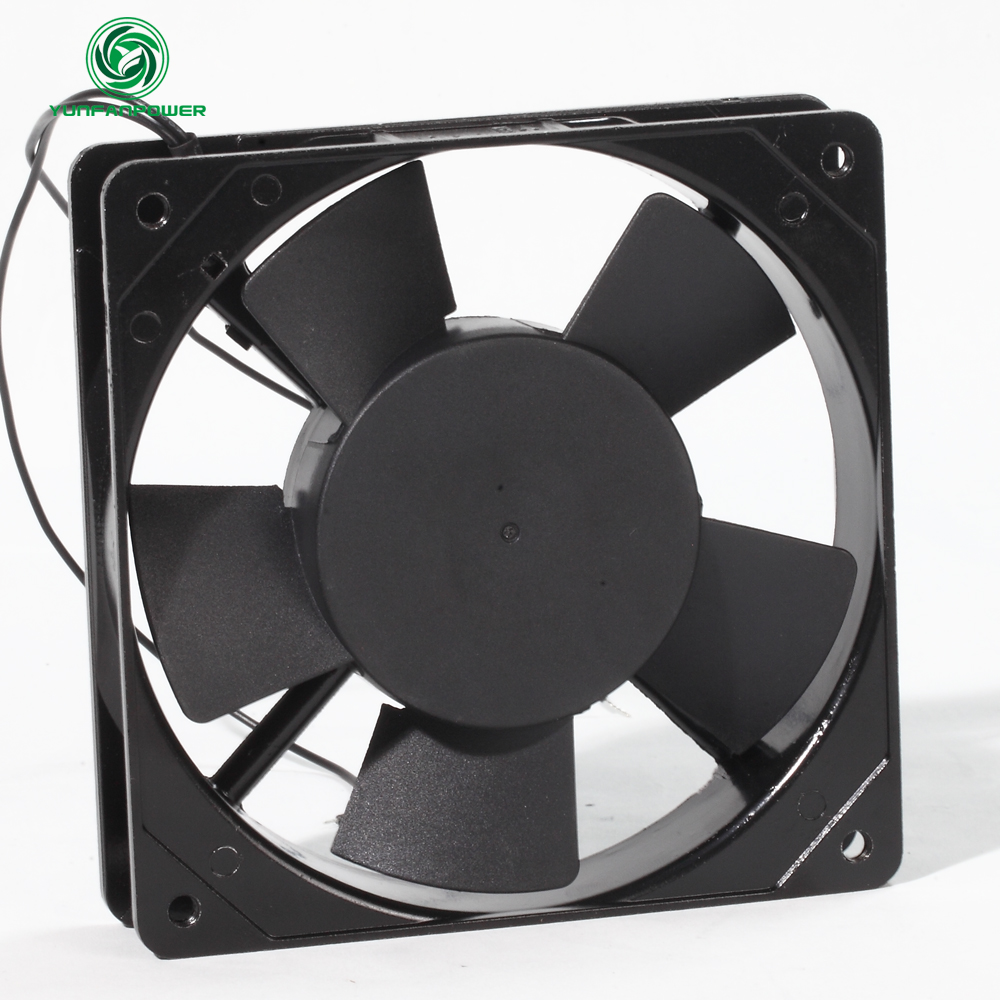

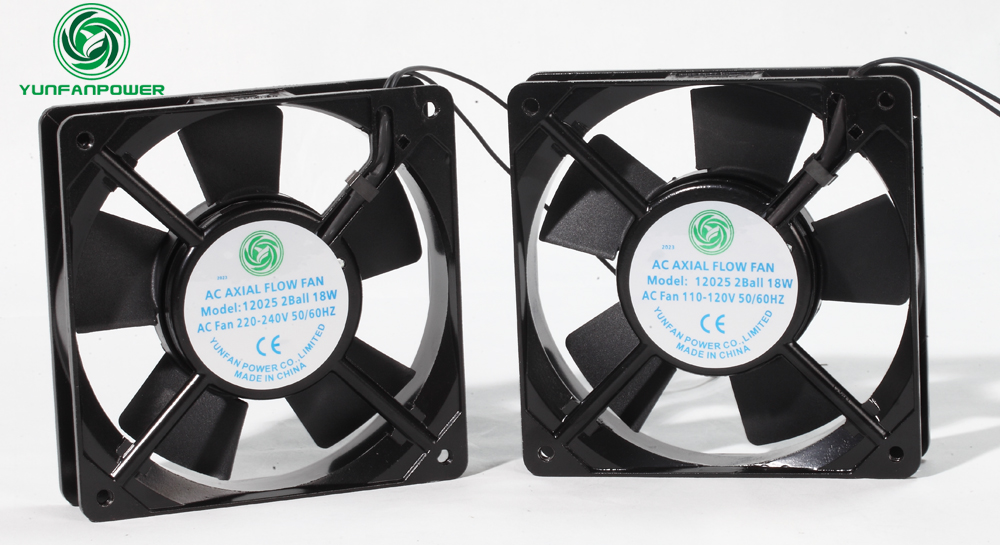

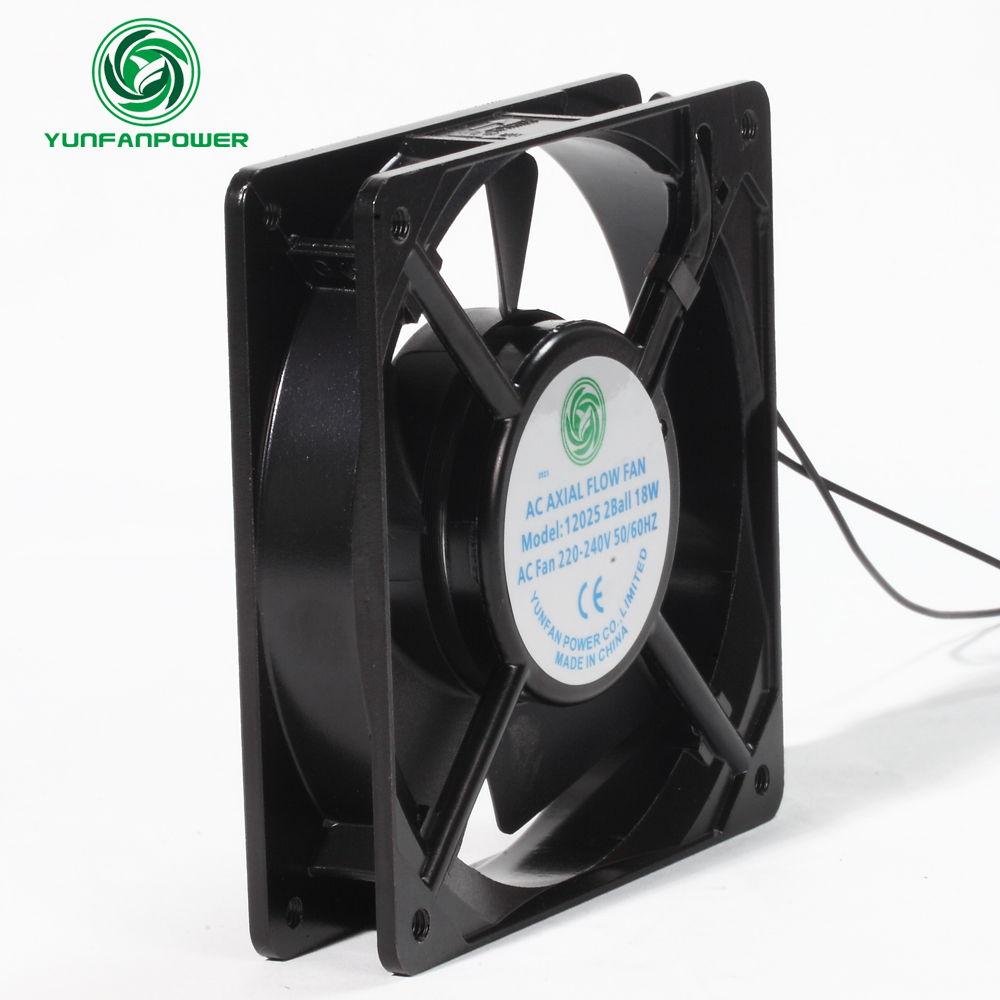

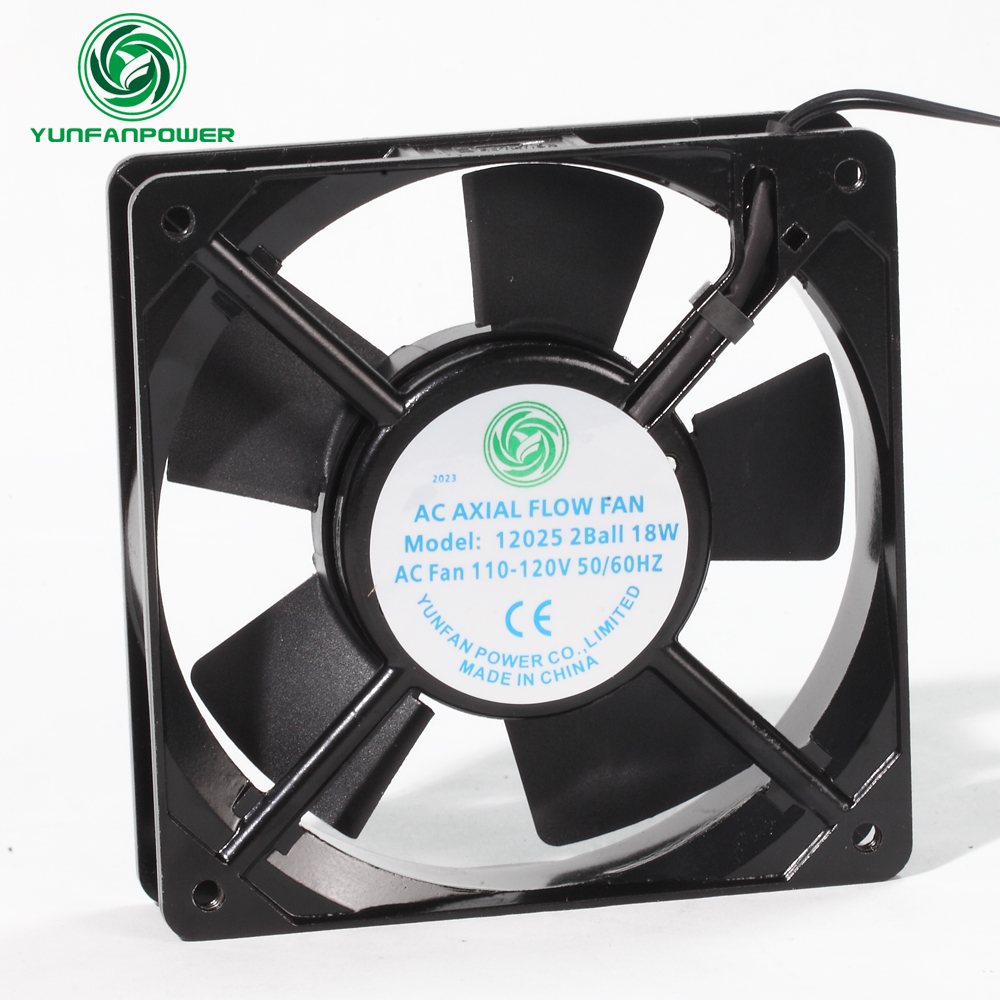

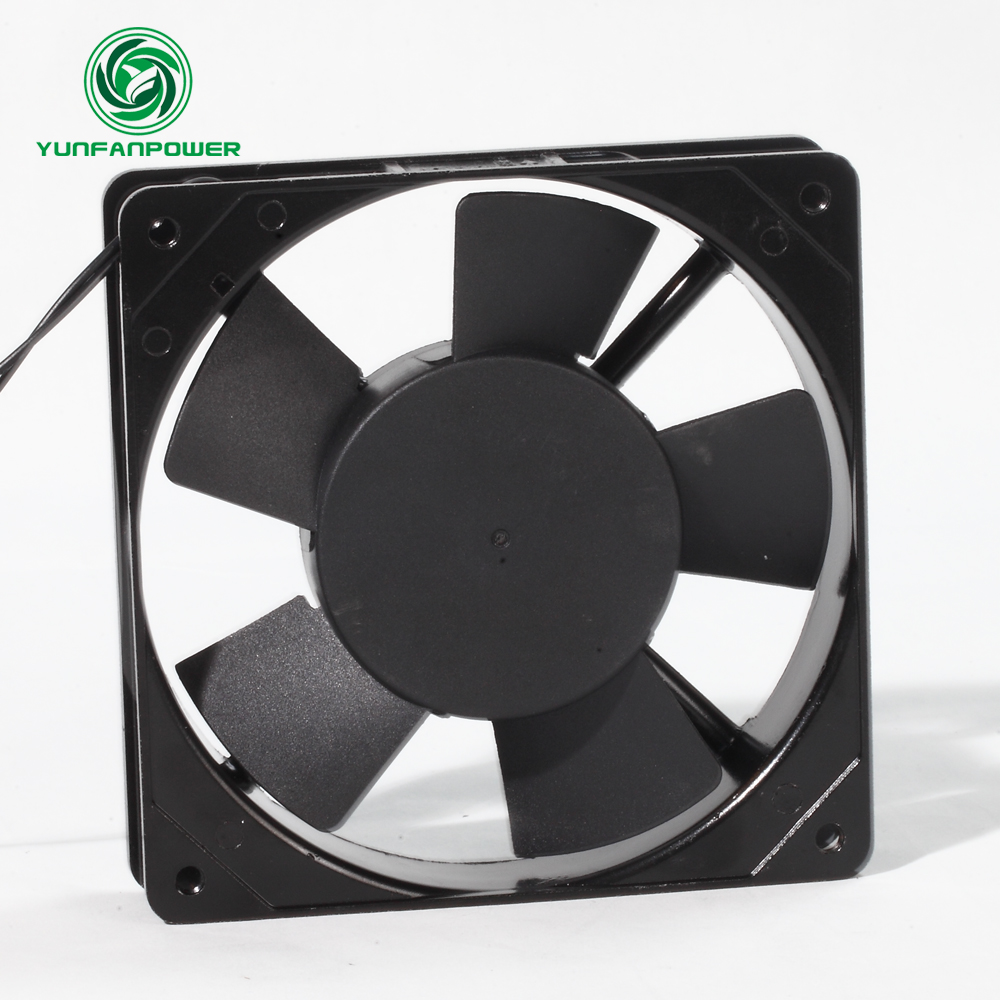

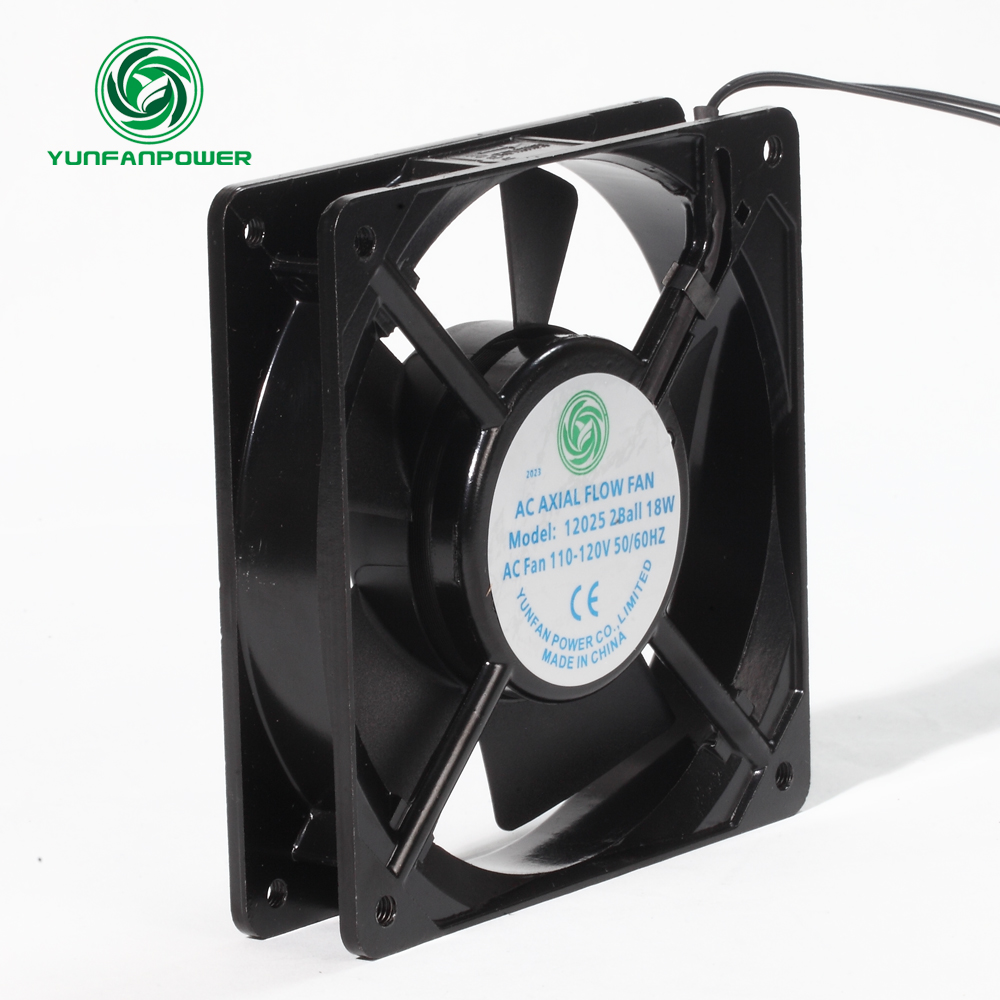

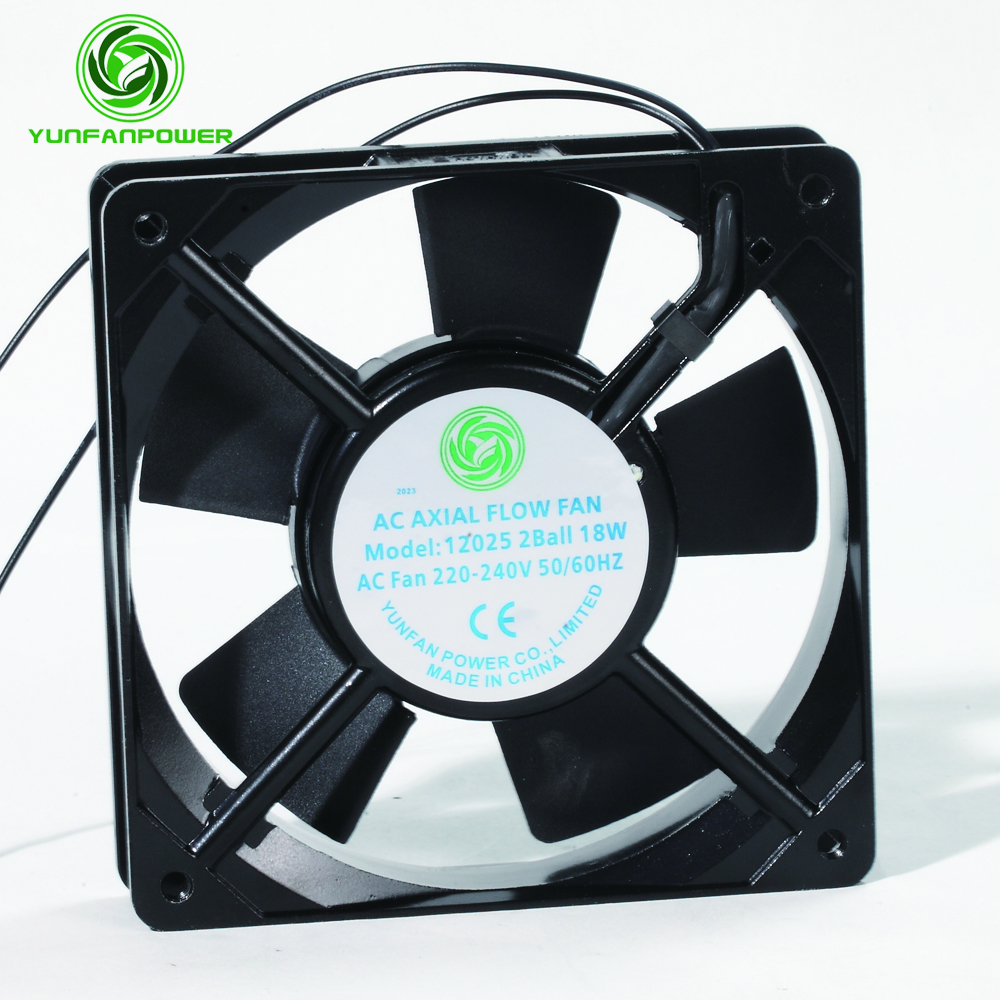

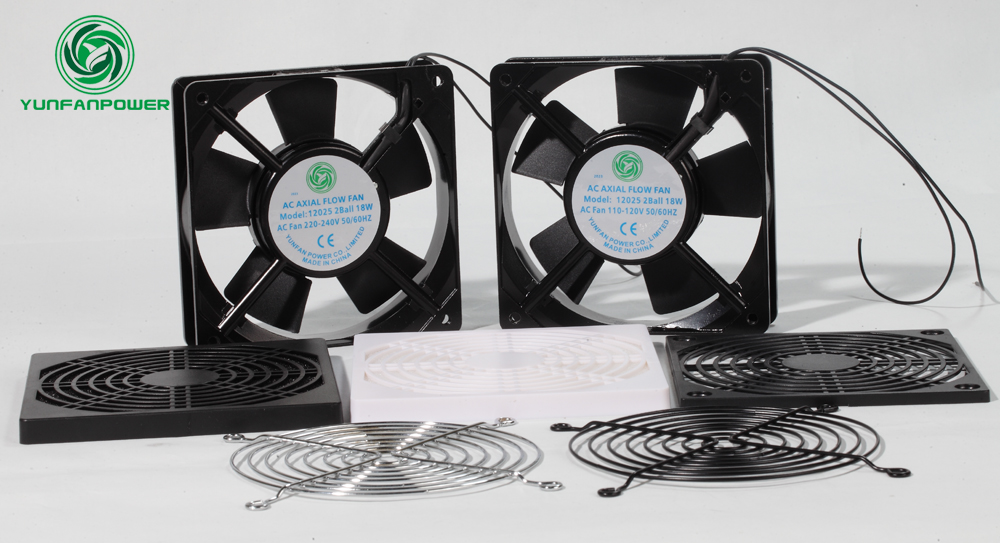

12025 AC FAN 120*120*25MM
| Applicable Industry | servers,ozone machine,air conditioner,Telecom,industrial,Automotive,consumer,information technology | ||
| Bearing type | double ball bearing type | ||
| Brand Name | YUNFANPOWER | ||
| Fan Size | 120*120*25MM | ||
| Keyword | ac fan,ac axial fan,waterproof fan,high speed cooling fan | ||
| Model Number | AC 12025 | ||
| Voltage support | 110V-120V/220V-240V/380V | ||
| Warranty | 2years | ||
| Weight | 330g | ||

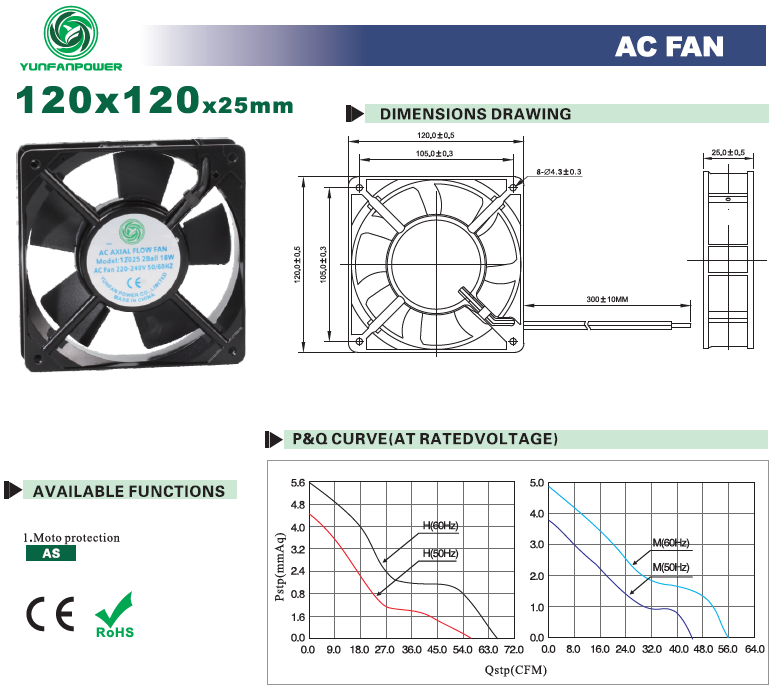

| Model | Bearing | Rated Voltage | Startup Voltage | Freq. | Current | Speed | Air Flow | Static Pressure | Noise |
|---|---|---|---|---|---|---|---|---|---|
| Part NO. | System | VAC | VAC | Hz | A | RPM | M^2/min | mmH_2O | dBA |
| YFA12025S1M | Sleeve | 110 | 100-125 | 50/60 | 0.16/0.15 | 1800/2300 | 1.27/1.58 | 3.8/4.9 | 31/36 |
| YFA12025S1H | 100-125 | 50/60 | 0.25/0.24 | 2300/2700 | 1.61/1.87 | 4.5/5.6 | 39/44 | ||
| YFA12025B1M | Ball | 100-125 | 50/60 | 0.16/0.15 | 1800/2300 | 1.27/1.58 | 3.8/4.9 | 31/36 | |
| YFA12025B1H | 100-125 | 50/60 | 0.25/0.24 | 2300/2700 | 1.61/1.87 | 4.5/5.6 | 39/44 | ||
| YFA12025S2M | Sleeve | 220 | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 1.27/1.58 | 3.8/4.9 | 31/36 |
| YFA12025S2H | 200-240 | 50/60 | 0.13/0.12 | 2300/2700 | 1.61/1.87 | 4.5/5.6 | 39/44 | ||
| YFA12025B2M | Ball | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 1.27/1.58 | 3.8/4.9 | 31/36 | |
| YFA12025B2H | 200-240 | 50/60 | 0.13/0.12 | 2300/2700 | 1.61/1.87 | 4.5/5.6 | 39/44 |
FAQ:
Q1: How long are you doing fan business ?
A1:
More than 8years do fan business.
Q2: What is DC Fan and AC fan?
A2:
DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and 72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose DC fan?
A3:
1 size of the fan samples:6025 (60*60*25mm)
2 Voltage 5V/12V/24V/48V
3 current 0.17A
4 speed 5000RPM
5 air flow 25CFM
6 noise 40dBA
7 bearing type:choose ball bearing type or sleeve bearing type ?
8 two wire or three wire 2wire
9 cable length 300mm
10 connector molex 2510 or no connector
11 function FGRDPWMSoft Start ......
Q4: What is the delivery time?
A4:
Sample lead time:5-10 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q5: Can you tell me the normal DC fan Model?
A5:
40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm 60*60*10mm 60*60*15mm 60*60*25mm
80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*32mm 120*120*38mm 140*140*38mm 140*140*50mm
150*150*50mm 172*150*51mm 180*180*60mm 225*225*80mm 280*280*80mm
